Illumination: Taillight

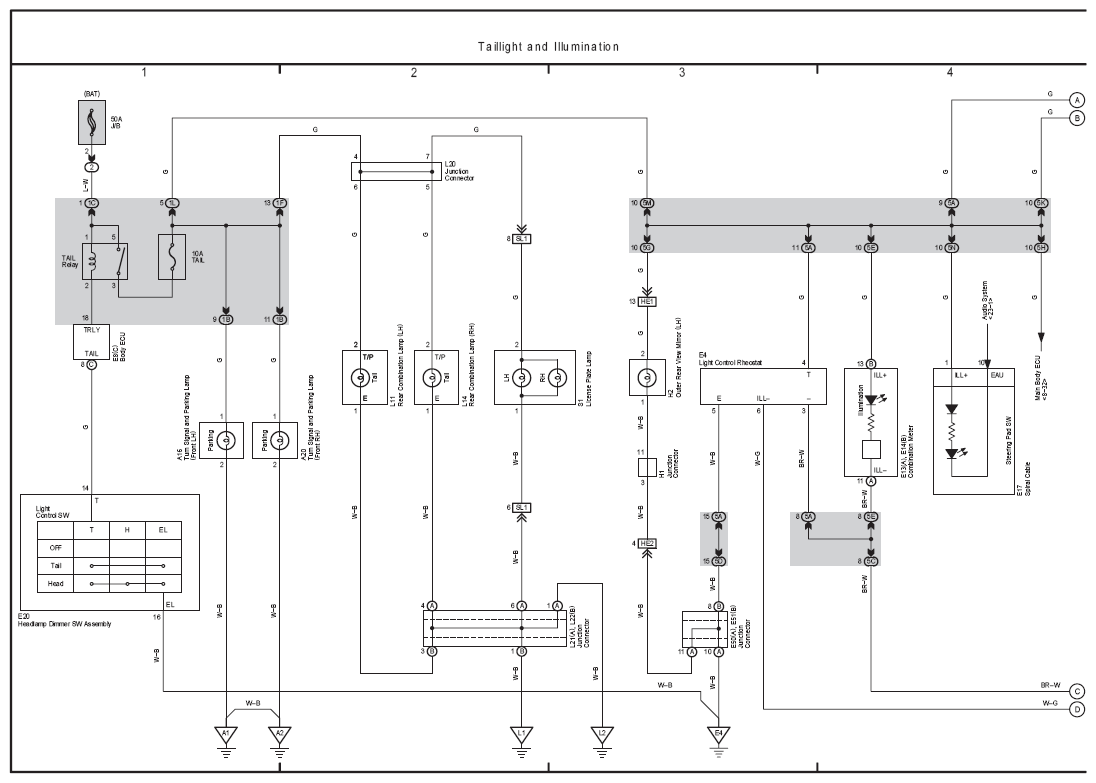

Fig 1: Taillight And Illumination Electrical Wiring Diagram (1 Of 2)
G07116596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

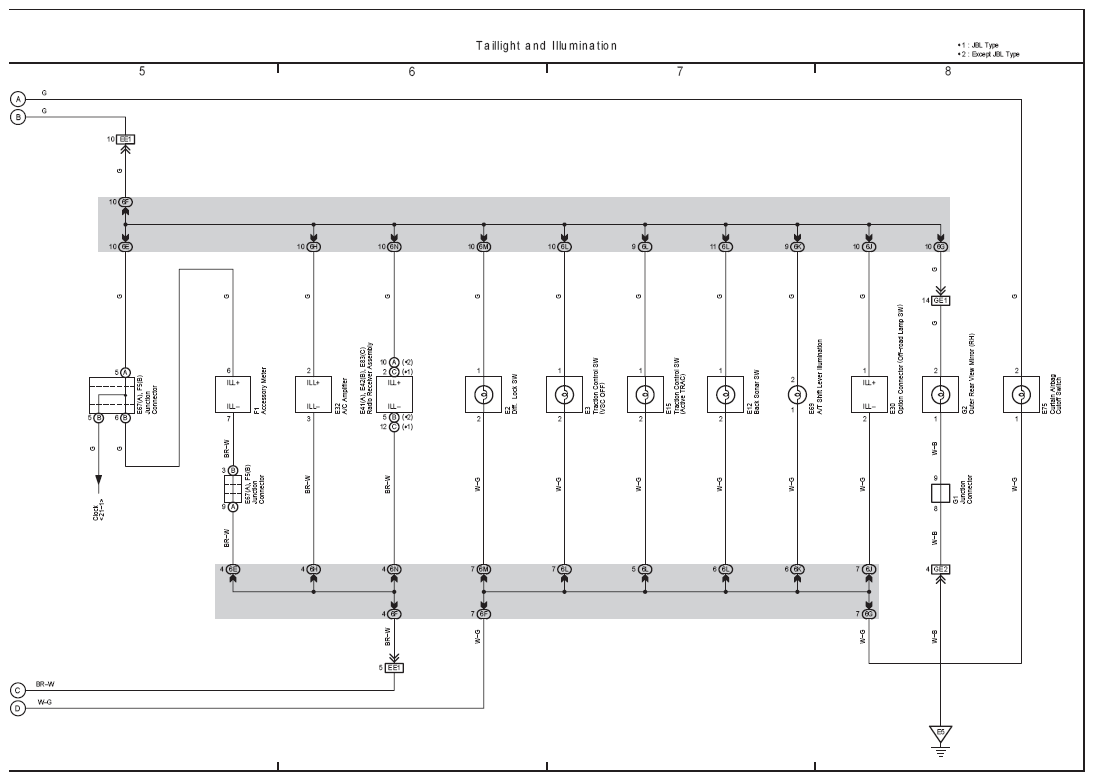

Fig 2: Taillight And Illumination Electrical Wiring Diagram (2 Of 2)
G07116597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
