Combination Meter

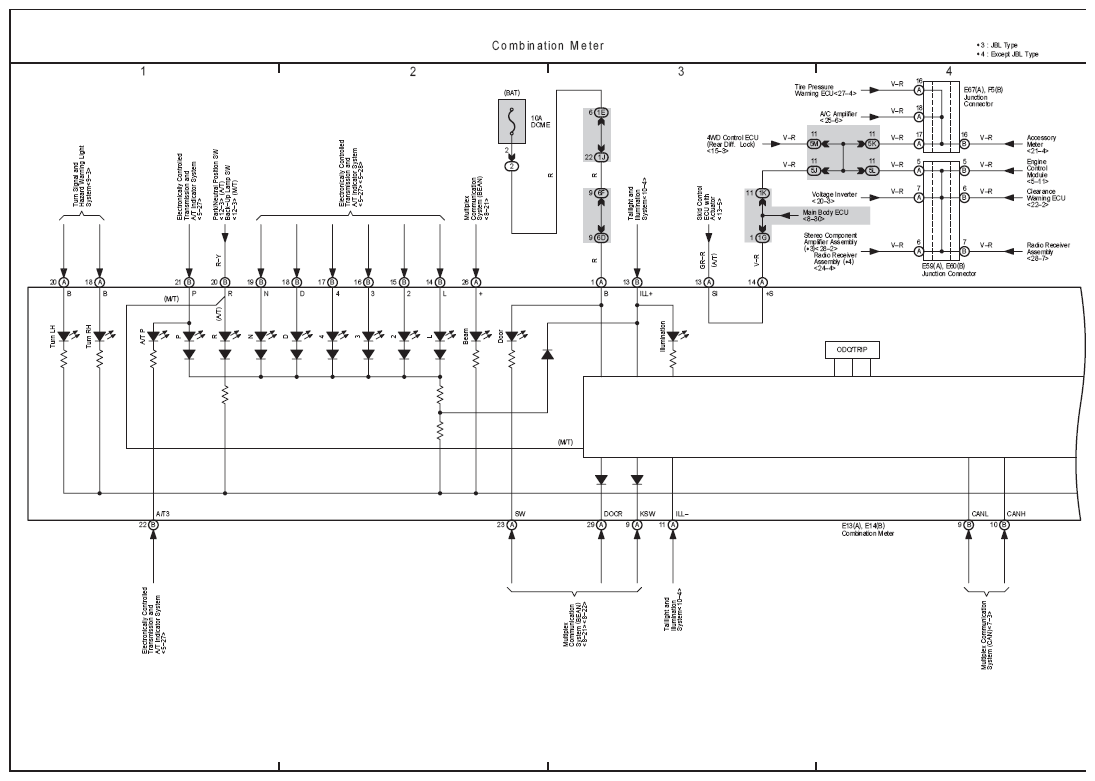

Fig 1: Combination Meter Electrical Wiring Diagram (1 Of 2)
G07116614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

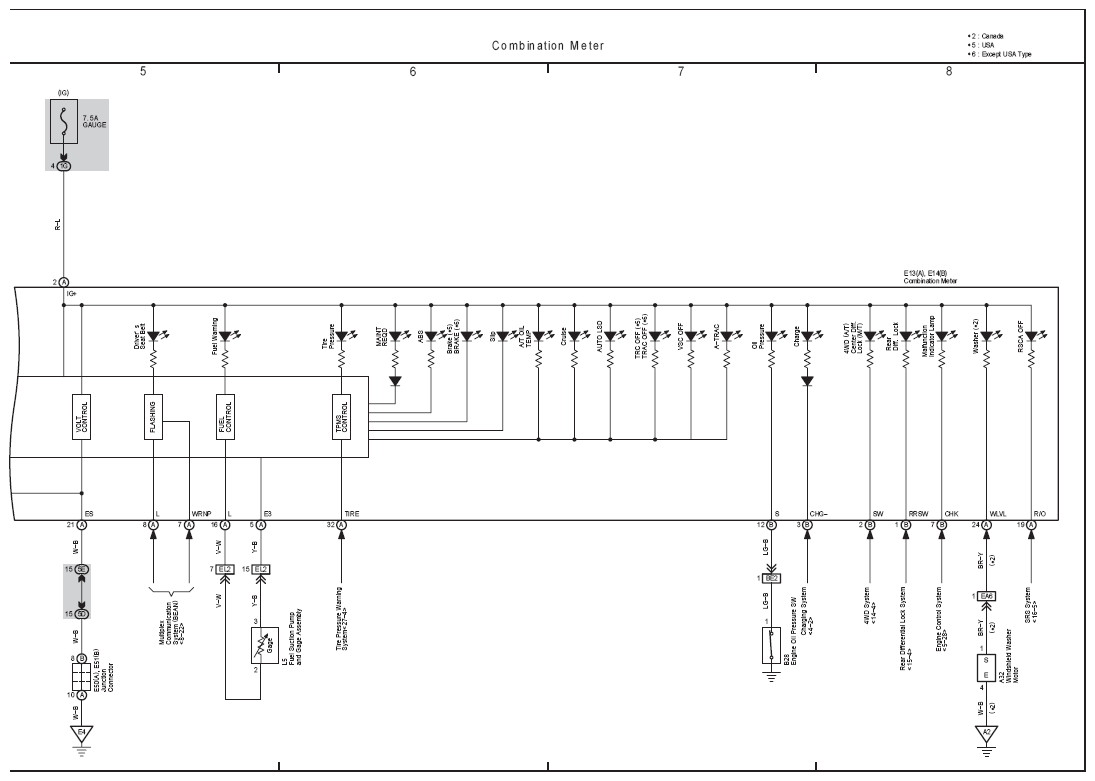

Fig 2: Combination Meter Electrical Wiring Diagram (2 Of 2)
G07116615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
