Overall Electrical Wiring Diagram
>>
Back-Up Light
Back-Up Light

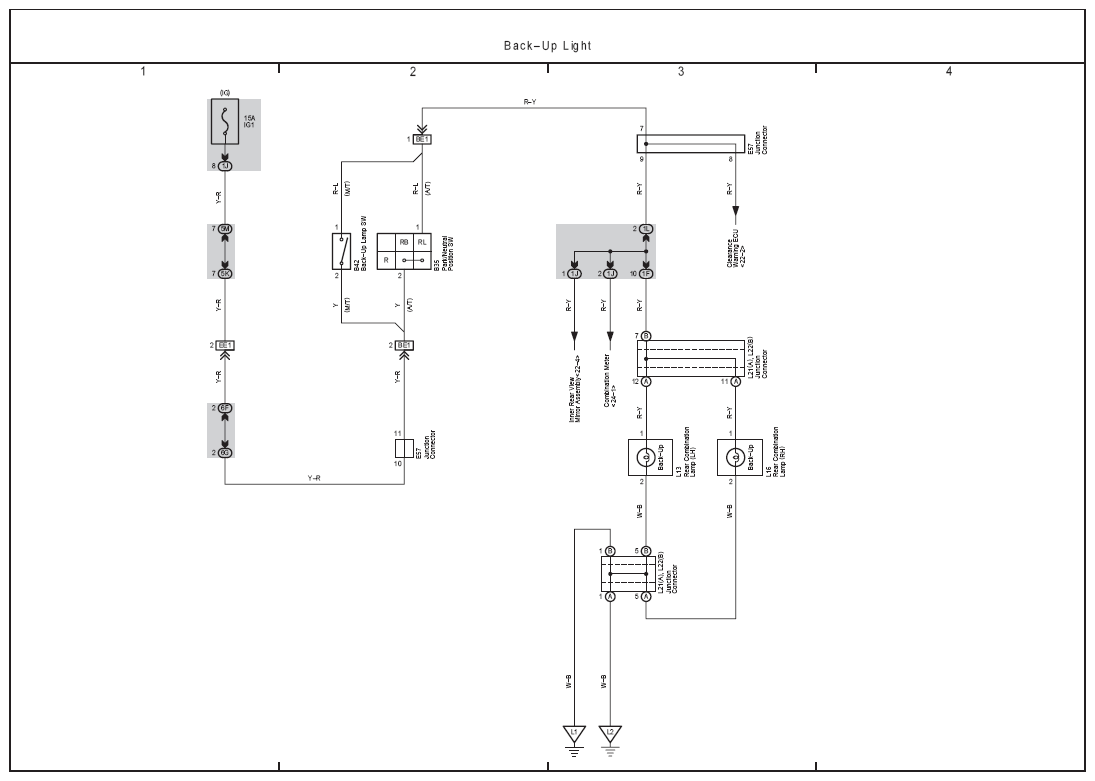

Fig 1: Back-Up Light Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
