Automatic Glare-Resistant EC Mirror: Parking Assist (Intuitive Parking Assist): Parking Assist (Rear View Monitor)

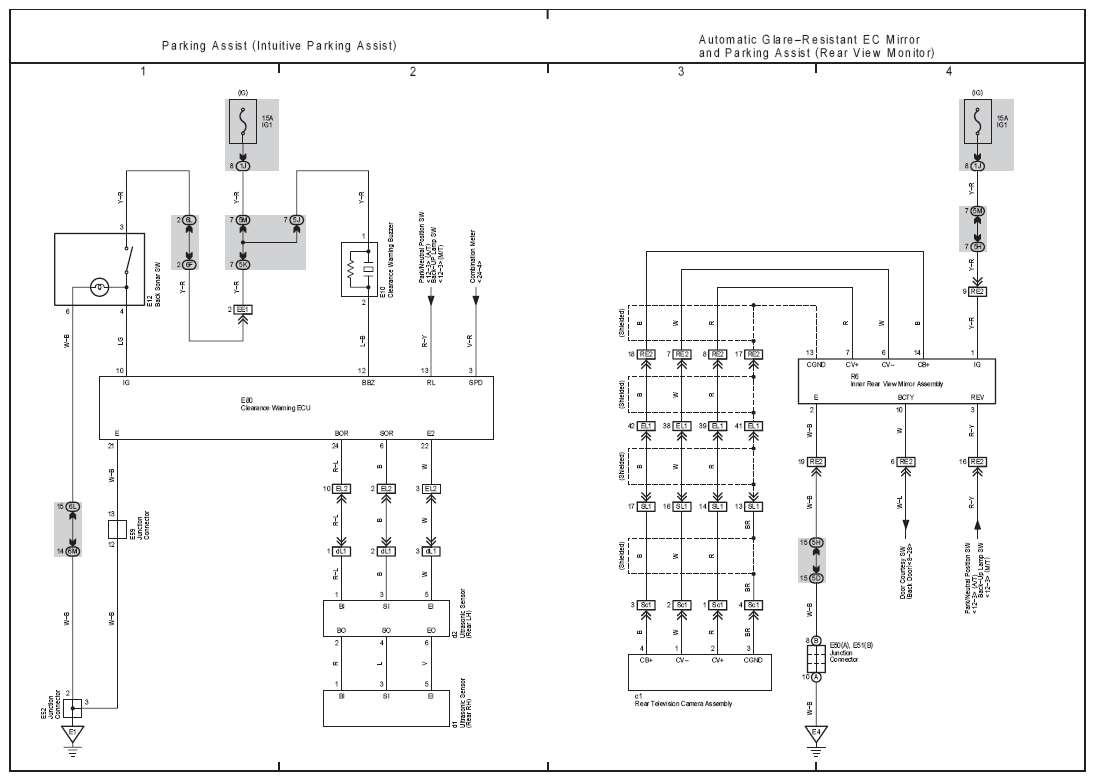

Fig 1: Parking Assist (Intuitive Parking Assist) And Automatic Glare-Resistant EC Mirror And Parking Assist (Rear View Monitor) Electrical Wiring Diagram
G07116611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
