Overall Electrical Wiring Diagram
>>
Accessory Meter: Clock
Accessory Meter: Clock

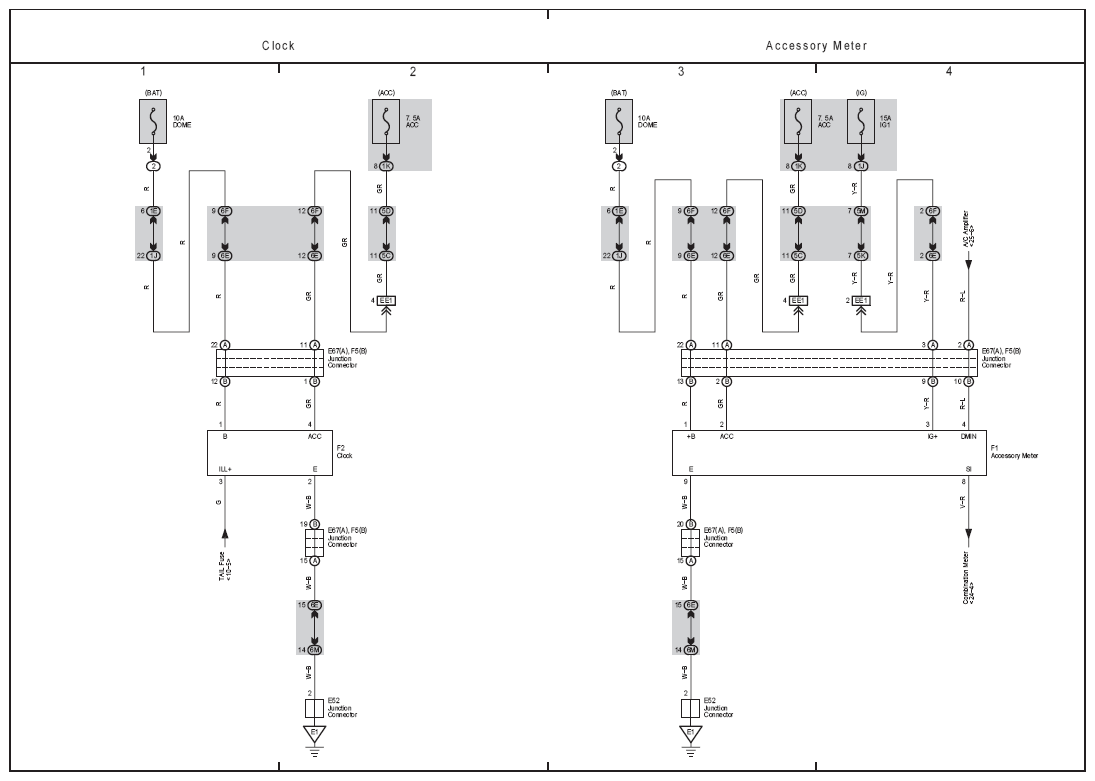

Fig 1: Clock And Accessory Meter Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
