: Location of Connector Joining Wire Harness and Wire Harness

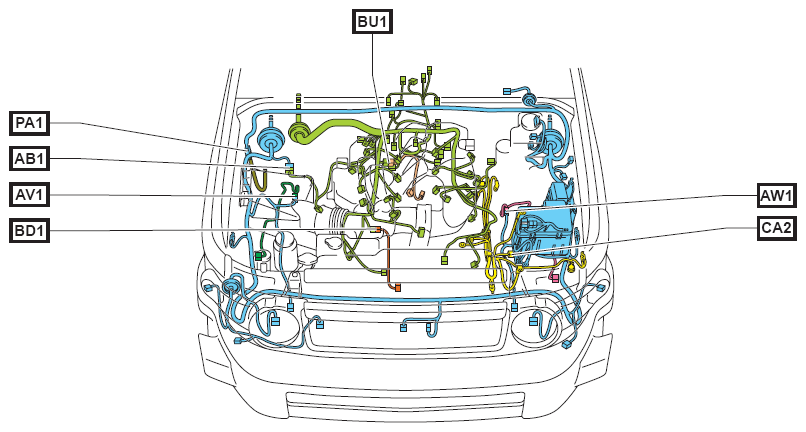

Fig 1: Locating Wiring Harness
G07116399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

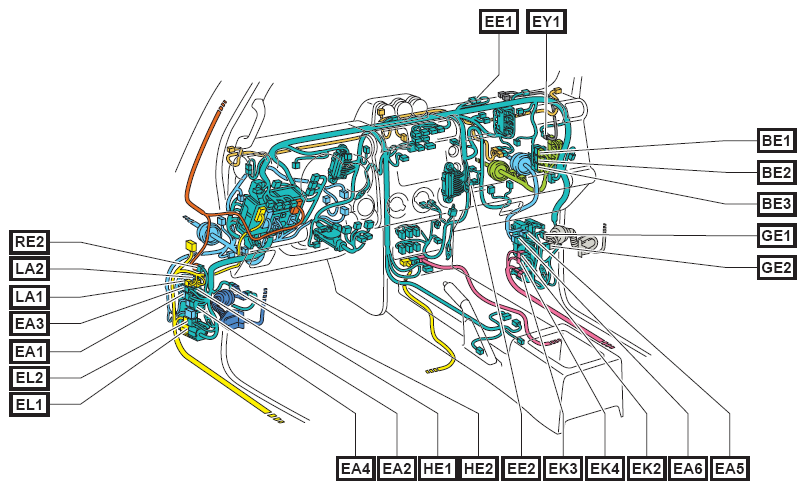

Fig 1: Locating Wiring Harness
G07116401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

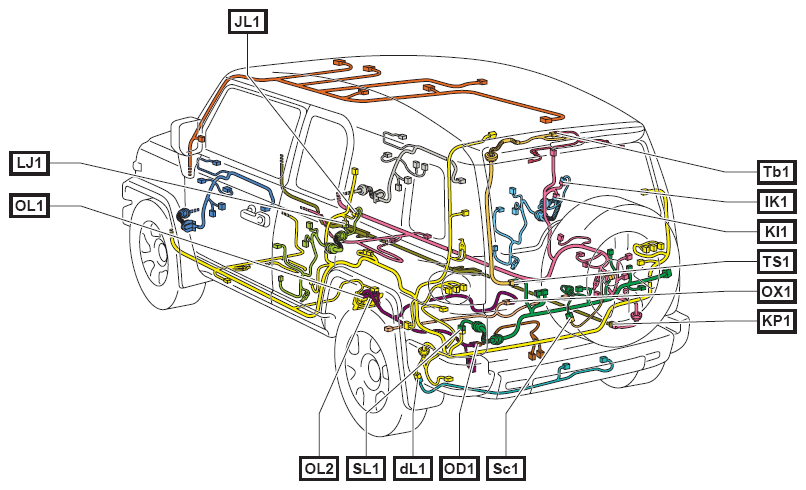

Fig 1: Locating Wiring Harness
G07116403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

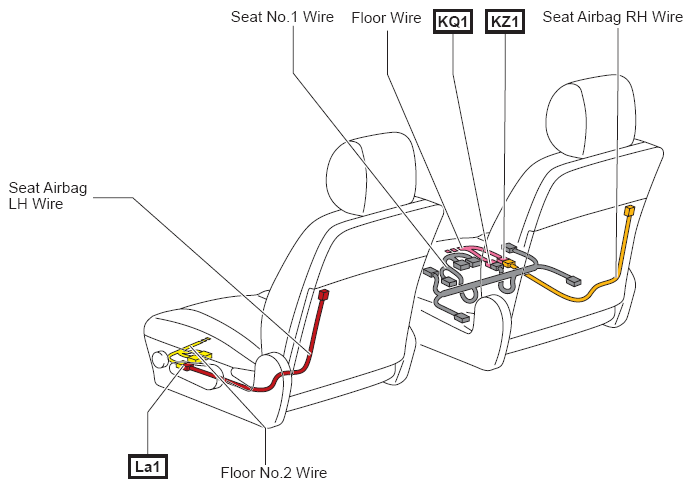

Fig 1: Locating Wiring Harness
G07116405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
