Engine Room Relay Block No. 2

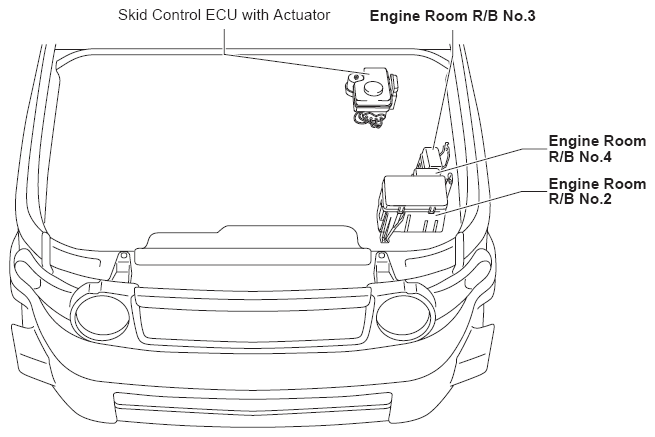

Engine Compartment Left (See Figure)

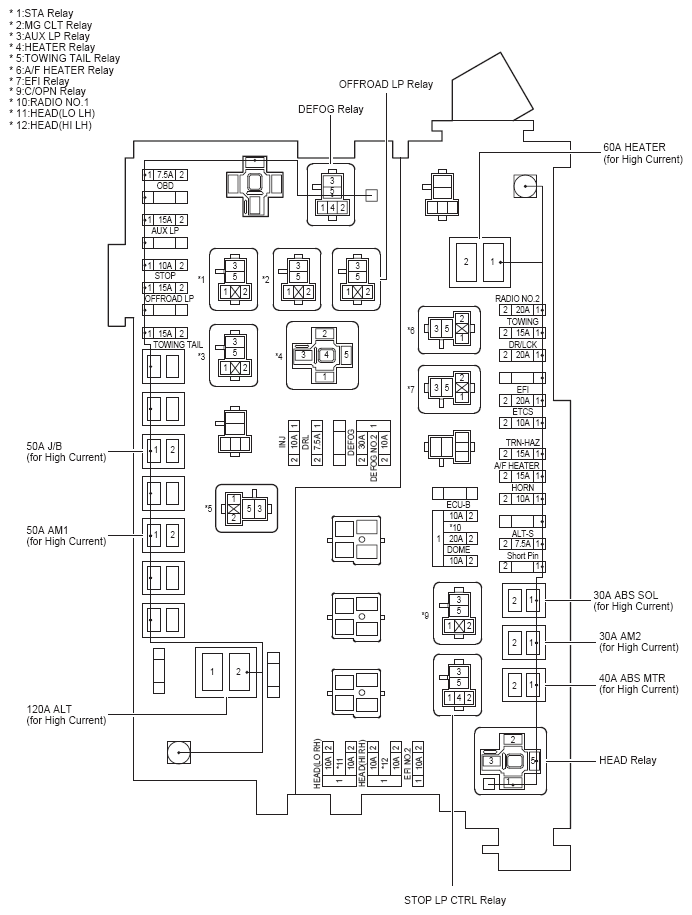

ENGINE ROOM R/B NO. 2 RELAY IDENTIFICATION
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| *1: | STA Relay |
| *2: | MG CLT Relay |
| *3: | AUX LP Relay |
| *4: | Heater Relay |
| *5: | Towing Tail Relay |
| *6: | A/F Heater Relay |
| *7: | EFI Relay |
| *9: | C/OPN Relay |
| - | Defog Relay |
| - | Off Road LP Relay |
| - | Head Relay |
ENGINE ROOM R/B NO.2 FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | ALT-S | Charging |
| 7.5A | DRL | Headlight |
| 7.5A | OBD | Data Link Connector 3 |
| 10A | DEFOG NO.2 | Engine Control |
| Rear Window Defogger | ||
| 10A | DOME | ABS, TRAC, VSC, Auto LSD and Active TRAC |
| Accessory Meter | ||
| Air Conditioning | ||
| Audio System (Except JBL Type) | ||
| Audio System (JBL Type) | ||
| Clock | ||
| Combination Meter | ||
| Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| Interior Light | ||
| Key Reminder | ||
| Light Auto Turn Off System | ||
| Power Outlet (115V) | ||
| Rear Differential Lock | ||
| Rear Window Defogger | ||
| 10A | DOME | Seat Belt Warning |
| Tire Pressure Warning System | ||
| Wireless Door Lock Control | ||
| 10A | ECU-B | ABS, TRAC, VSC, Auto LSD and Active TRAC |
| Air Conditioning | ||
| Door Lock Control and Glass Hatch Opener | ||
| Engine Immobiliser System | ||
| Headlight | ||
| Interior Light | ||
| Key Reminder | ||
| Light Auto Turn Off System | ||
| Power Window | ||
| Rear Wiper and Washer | ||
| Seat Belt Warning | ||
| SRS | ||
| Taillight and Illumination | ||
| Wireless Door Lock Control | ||
| 10A | EFI NO.2 | Electronically Controlled Transmission and A/T Indicator |
| Engine Control | ||
| 10A | ETCS | Cruise Control |
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| 10A | HEAD(HI LH) | Headlight |
| 10A | HEAD(HI RH) | Headlight |
| 10A | HEAD(LO LH) | Headlight |
| 10A | HEAD(LO RH) | Headlight |
| 10A | HORN | Horn |
| Wireless Door Lock Control | ||
| 10A | INJ | Engine Control |
| Ignition | ||
| 10A | STOP | ABS, TRAC, VSC, Auto LSD and Active TRAC |
| Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| Shift Lock | ||
| Stop Light | ||
| 15A | A/F HEATER | Engine Control |
| 15A | TRN-HAZ | Turn Signal and Hazard Warning Light |
| 20A | DR/LCK | Door Lock Control and Glass Hatch Opener |
| 20A | DR/LCK | Wireless Door Lock Control |
| 20A | EFI | Cruise Control |
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| 20A | RADIO NO.1 | Audio System (Except JBL Type) |
| Audio System (JBL Type) | ||
| 20A | RADIO NO.2 | Audio System (JBL Type) |
| 30A | ABS SOL | ABS, TRAC, VSC, Auto LSD and Active TRAC |
| 30A | AM2 | Ignition |
| Starting | ||
| 30A | DEFOG | Rear Window Defogger |
| 40A | ABS MTR | ABS, TRAC, VSC, Auto LSD and Active TRAC |
| 50A | AM1 | Starting |
| 50A | J/B | Combination Meter |
| Engine Control | ||
| Light Auto Turn Off System | ||
| Taillight and Illumination | ||
| Wireless Door Lock Control | ||
| 60A | HEATER | Air Conditioning |
| 120A | ALT | Charging |
| Engine Control | ||
| Rear Window Defogger | ||
| Starting | ||
