DTC B1655/37: Driver Side Seat Belt Buckle Switch Circuit Malfunction: Wiring Diagram

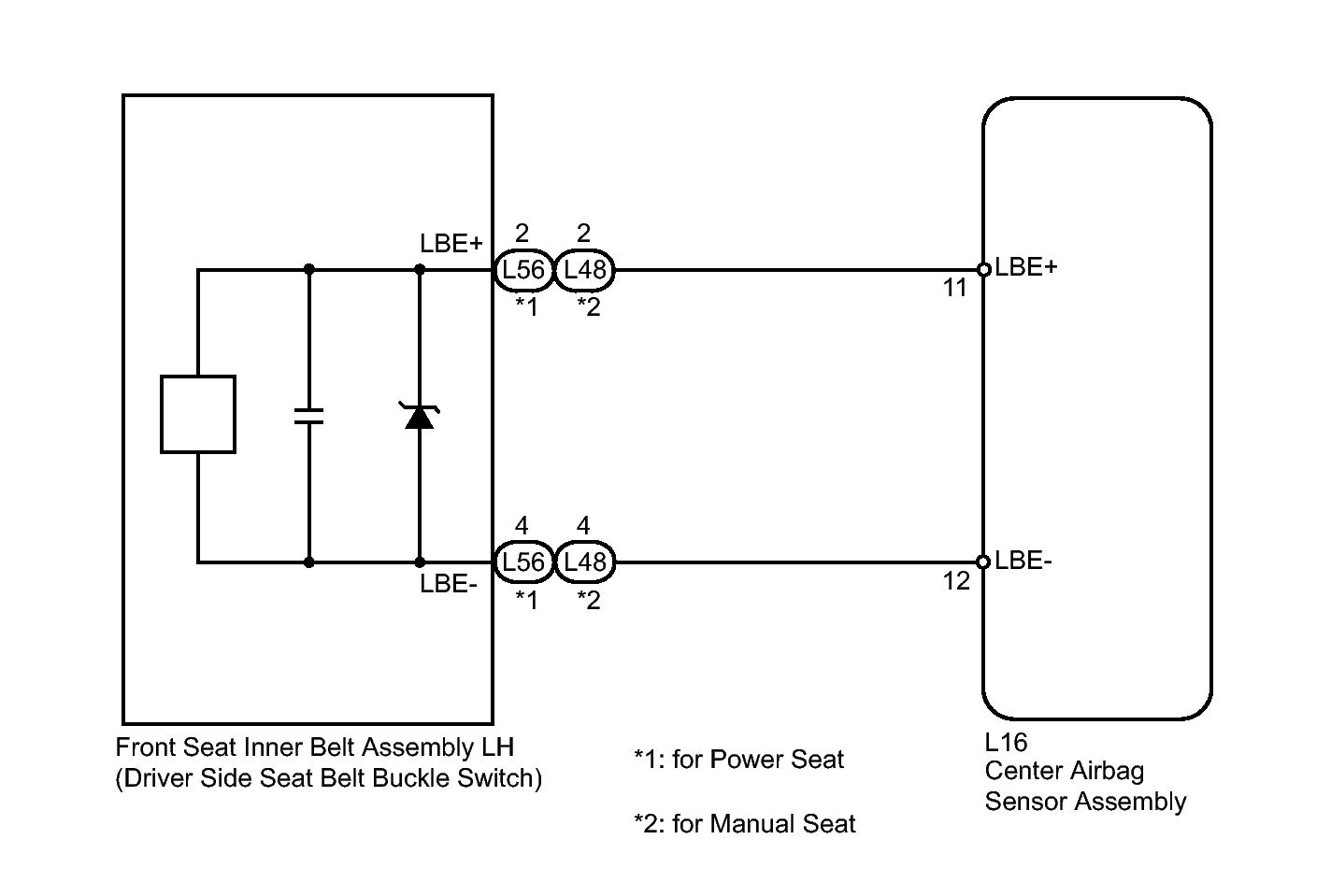

Fig 1: Identifying Driver Side Seat Belt Buckle Switch Wiring Diagram
GTY175292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
