DTC B1650/32: Occupant Classification System Malfunction: Wiring Diagram

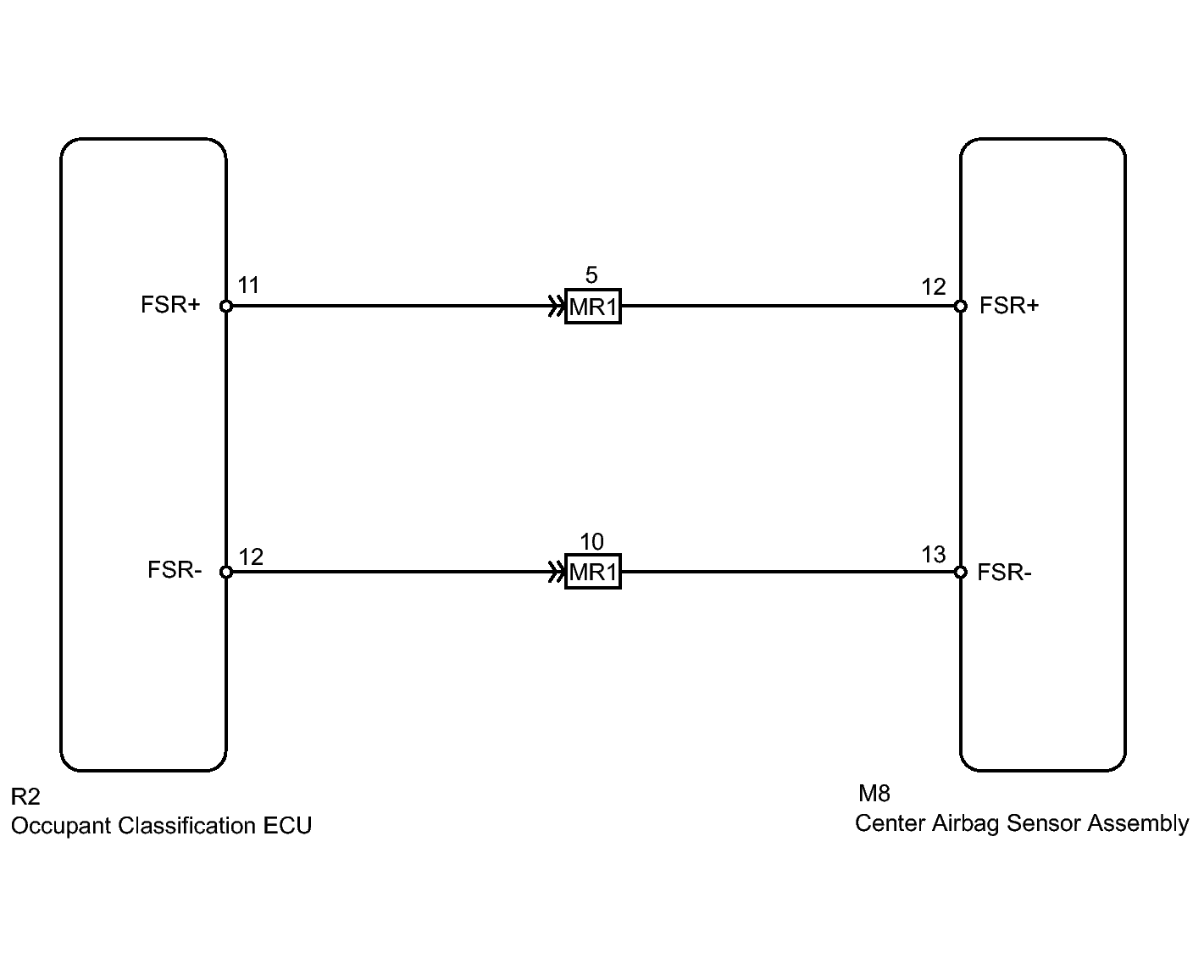

Fig 1: Identifying Center Airbag Sensor Assembly And Occupant Classfication Wiring Diagram
GTY204288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
