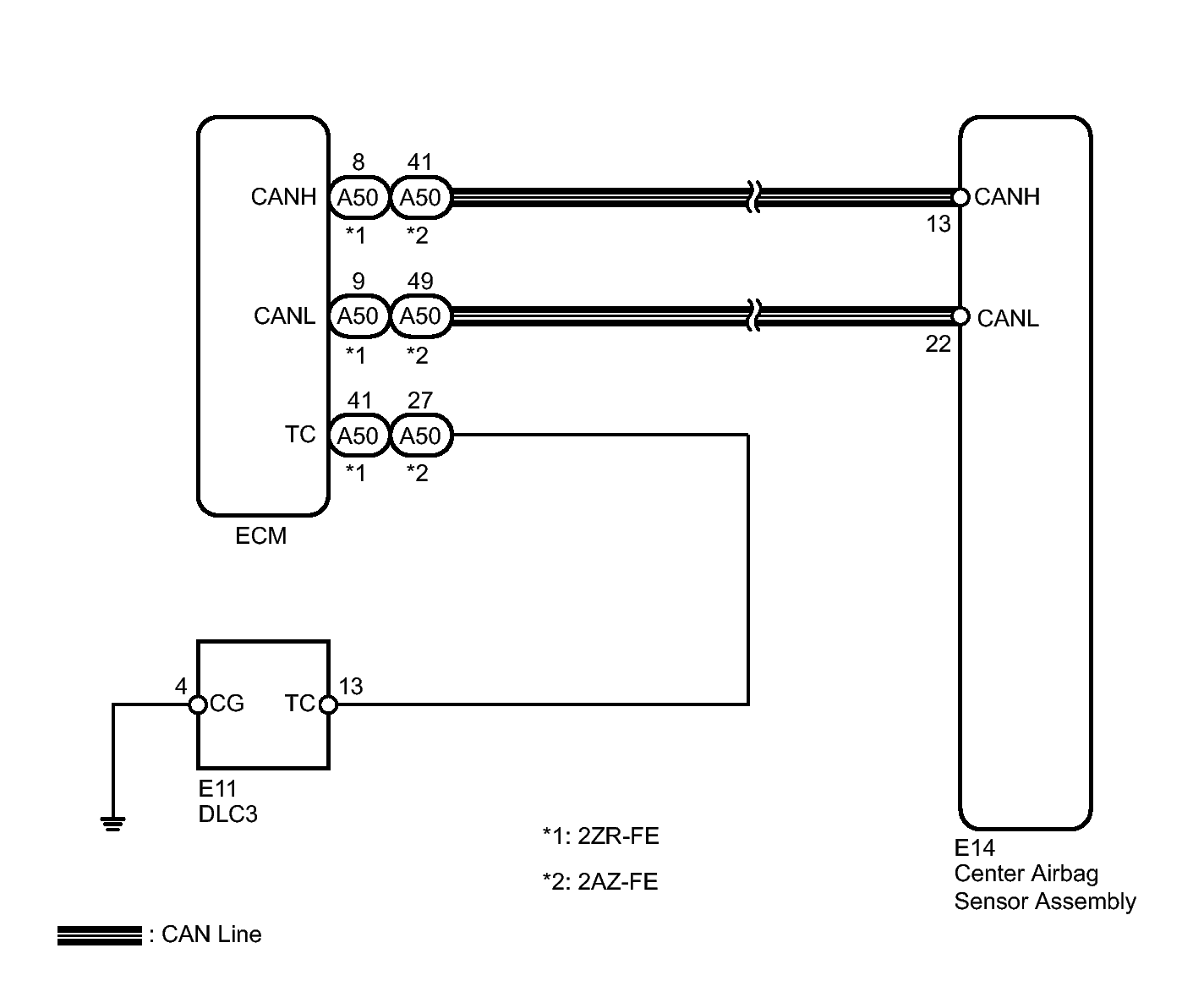

Home >> Toyota >> 2011 >> Corolla S, Automatic >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Restraint System (Diagnostic Codes (B1000 - B1908) & Symptom Tests) >> Airbag System >> Circuit Tests >> TC and CG Terminal Circuit >> Wiring Diagram
