Turn Signal and Hazard Warning Light (Except TMC Made)

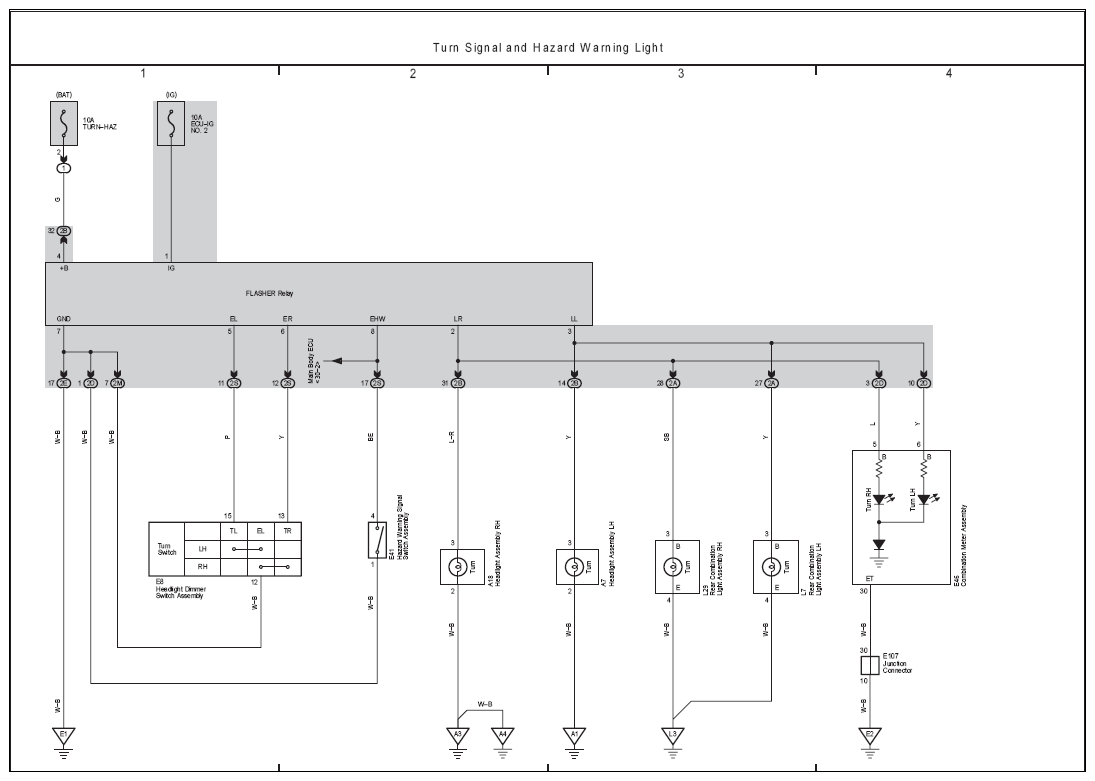

Fig 1: Turn Signal And Hazard Warning Light Electrical Wiring Diagram

G07115380

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
