Tire Pressure Warning System (TMC Made)

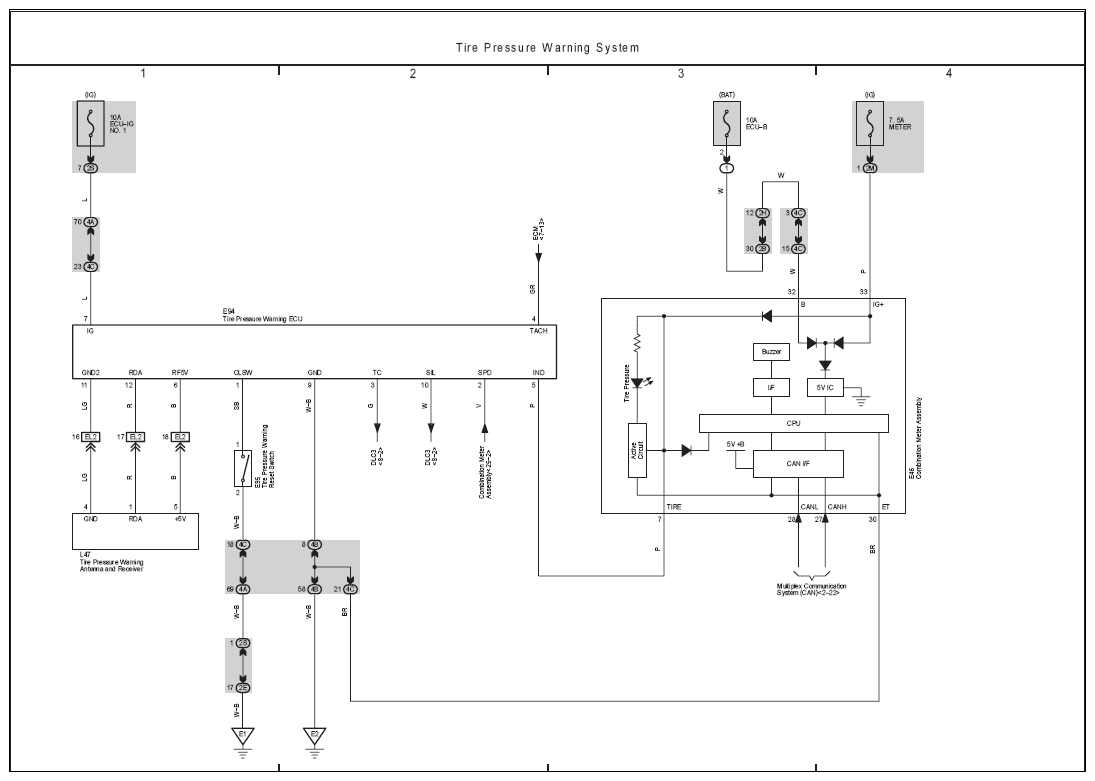

Fig 1: Tire Pressure Warning System Electrical Wiring Diagram

G07115337

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
