Toyota
>>
2011
>>
Corolla S, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Tire Pressure Warning System (Except TMC Made)
Tire Pressure Warning System (Except TMC Made)

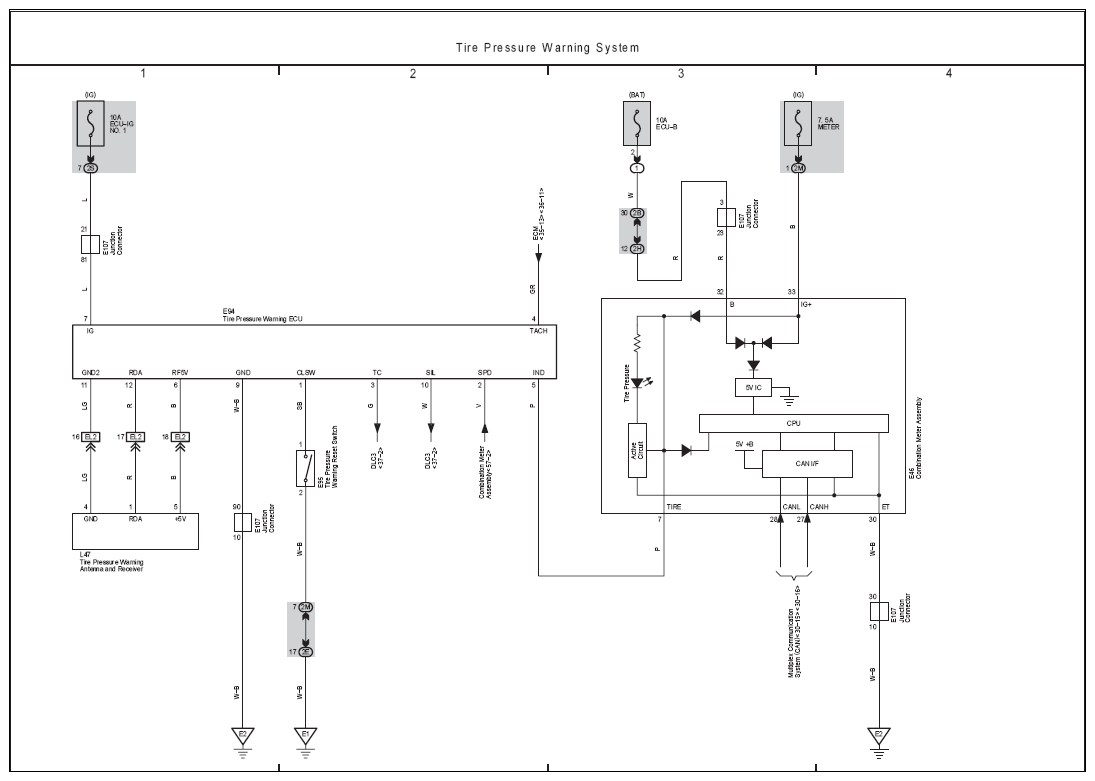

Fig 1: Tire Pressure Warning Light Electrical Wiring Diagram
