Theft Deterrent (Except TMC Made)

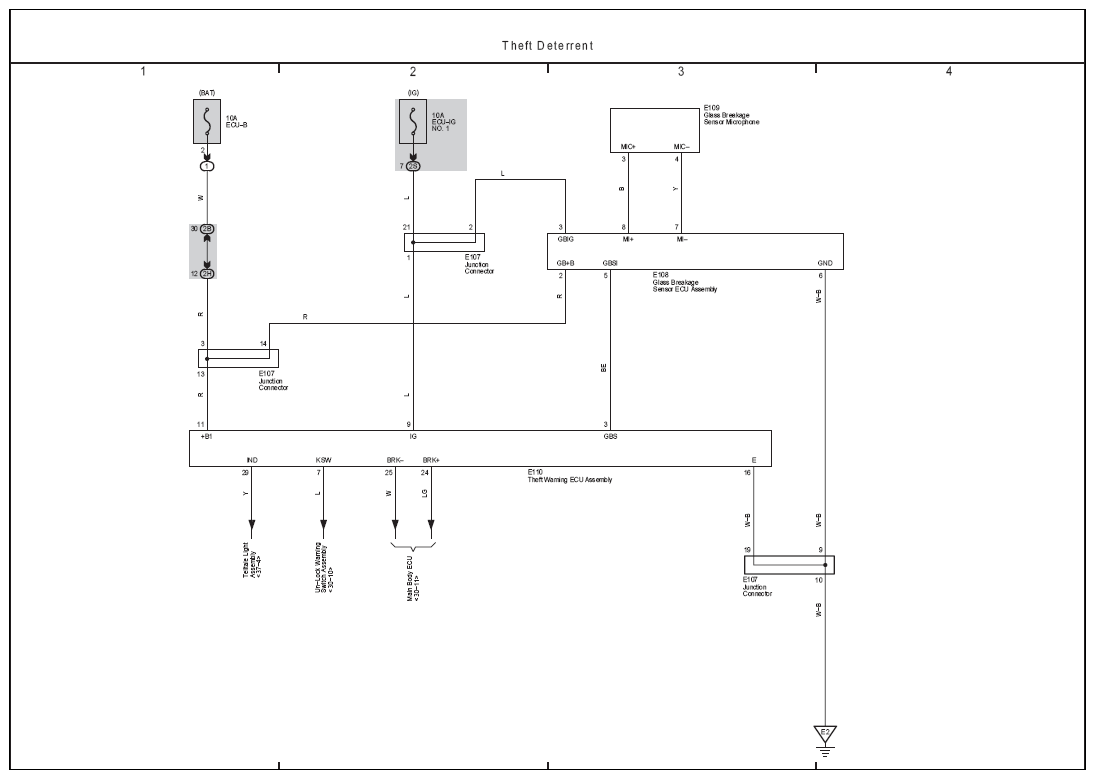

Fig 1: Theft Deterrent Electrical Wiring Diagram

G07115411

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
