Starting (w/o Smart Key System) (Except TMC Made)

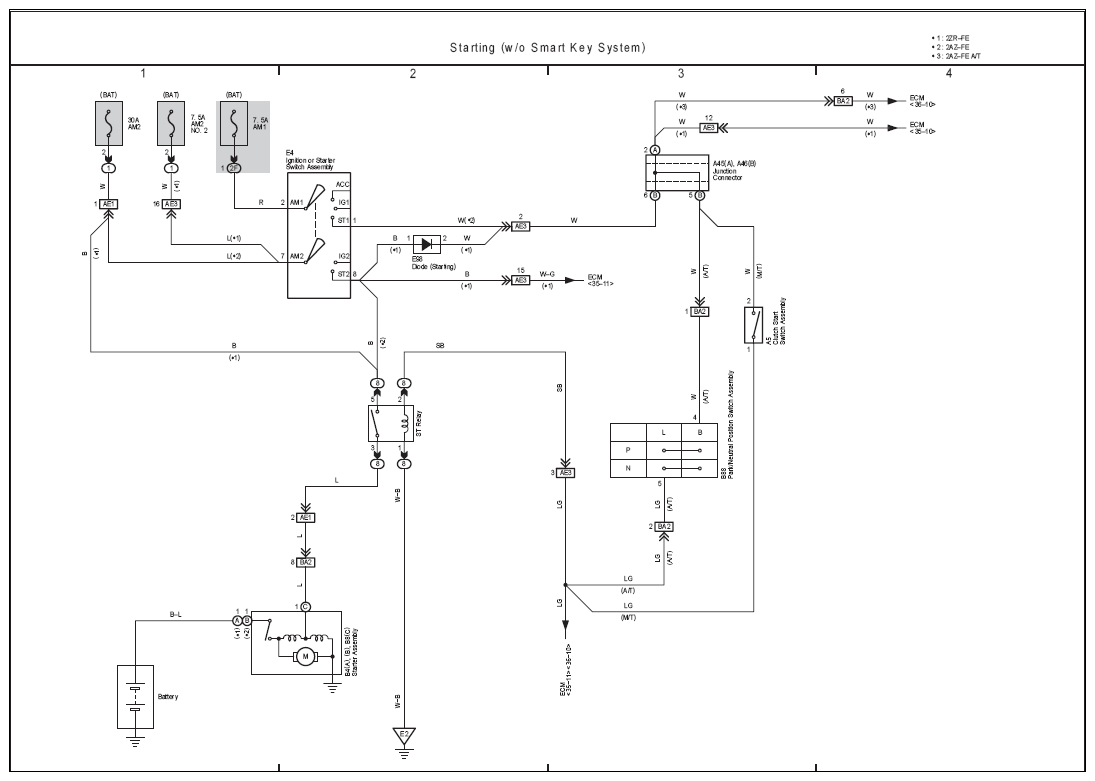

Fig 1: Starting (w/o Smart Key System) Electrical Wiring Diagram

G07115364

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
