Shift Lock (TMC Made)

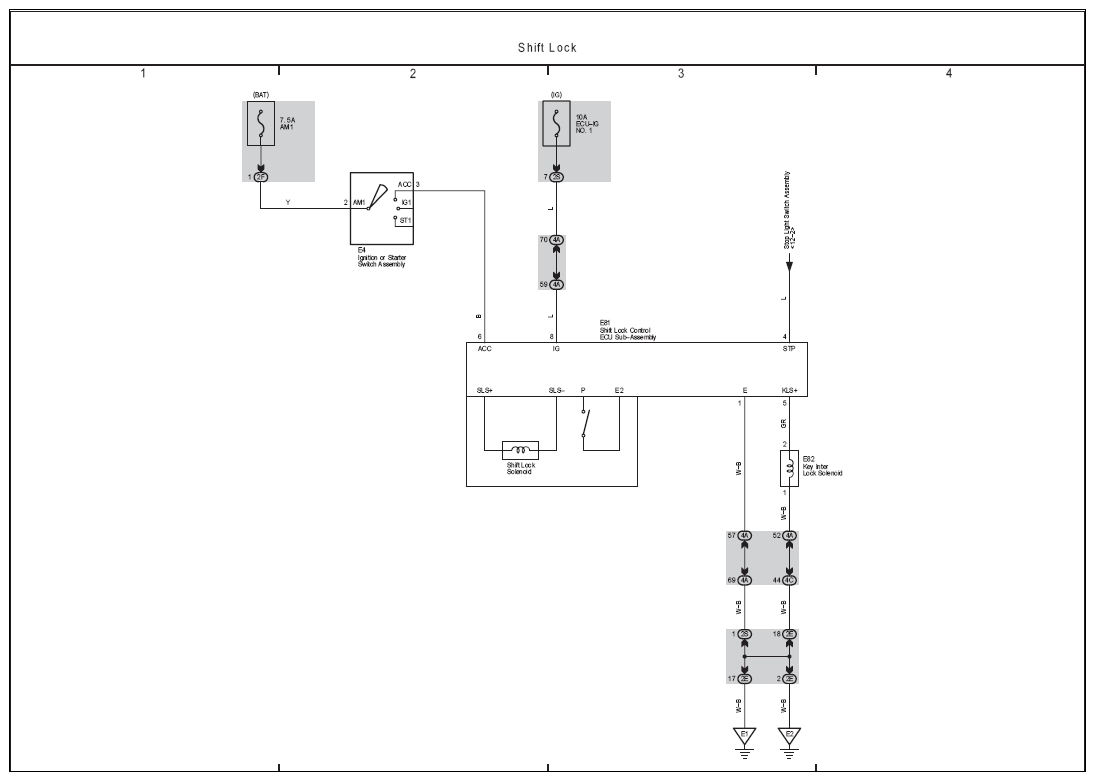

Fig 1: Shift Lock Electrical Wiring Diagram

G07115338

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
