SRS (Except TMC Made)

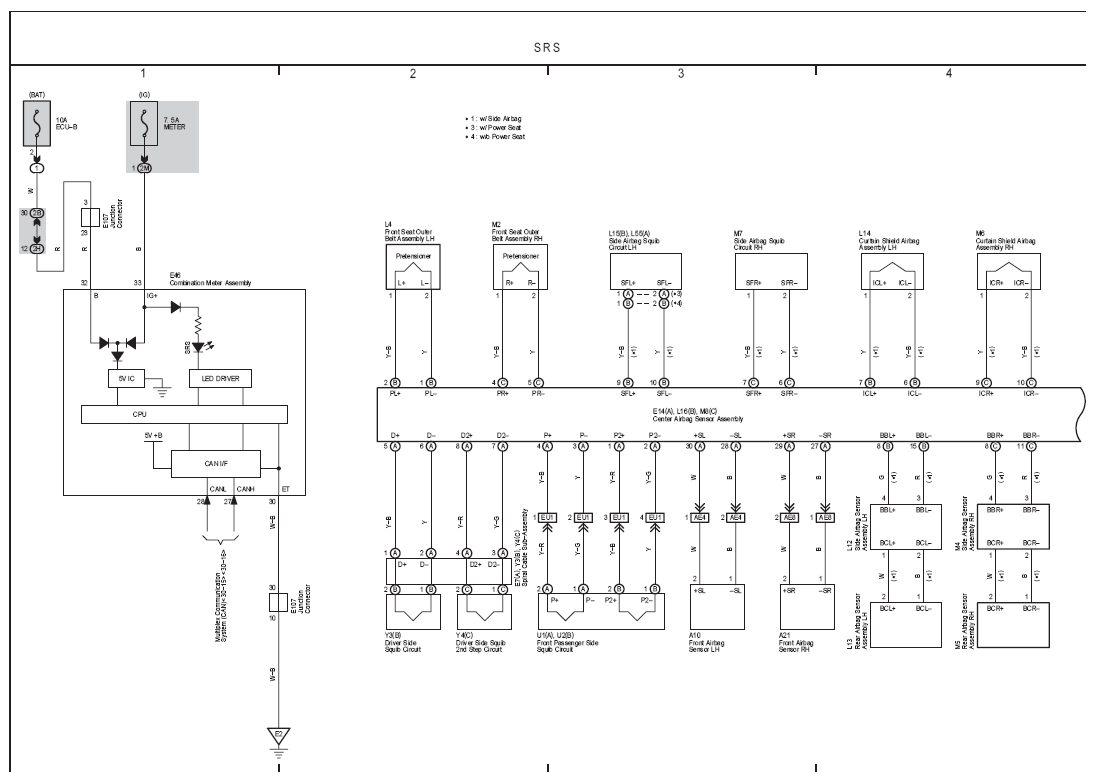

Fig 1: SRS Electrical Wiring Diagram (1 Of 2)
G07115388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

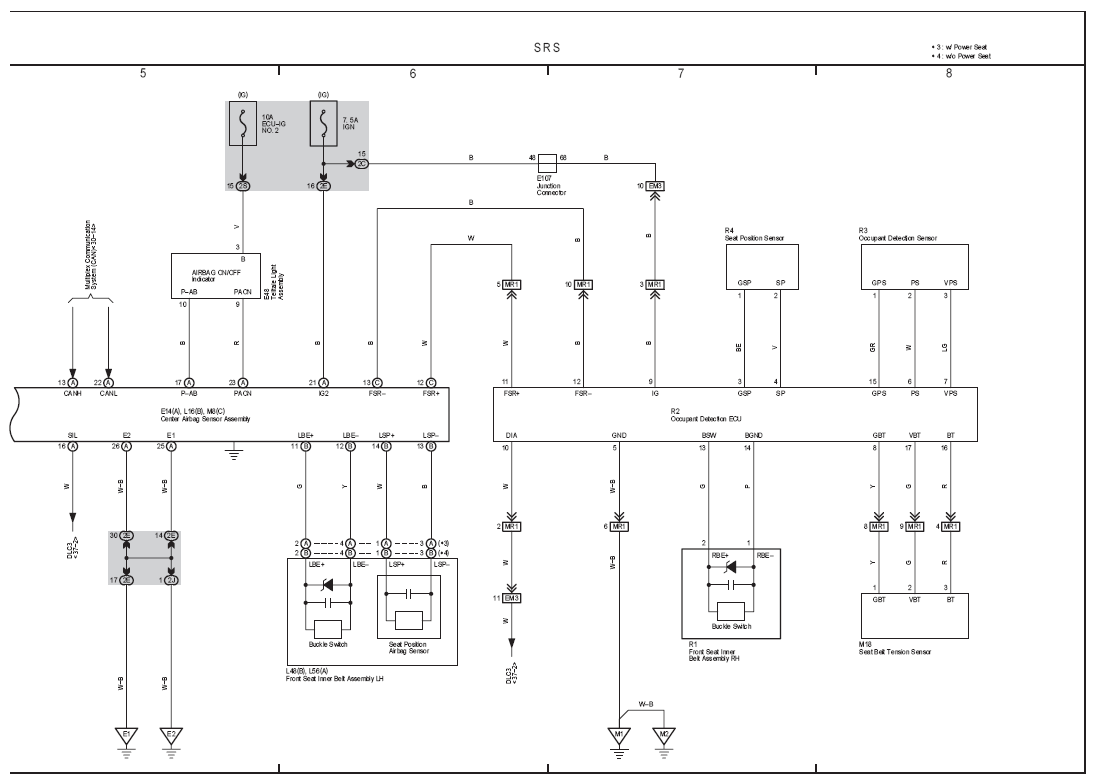

Fig 2: SRS Electrical Wiring Diagram (2 Of 2)
G07115389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
