Power Window (TMC Made)

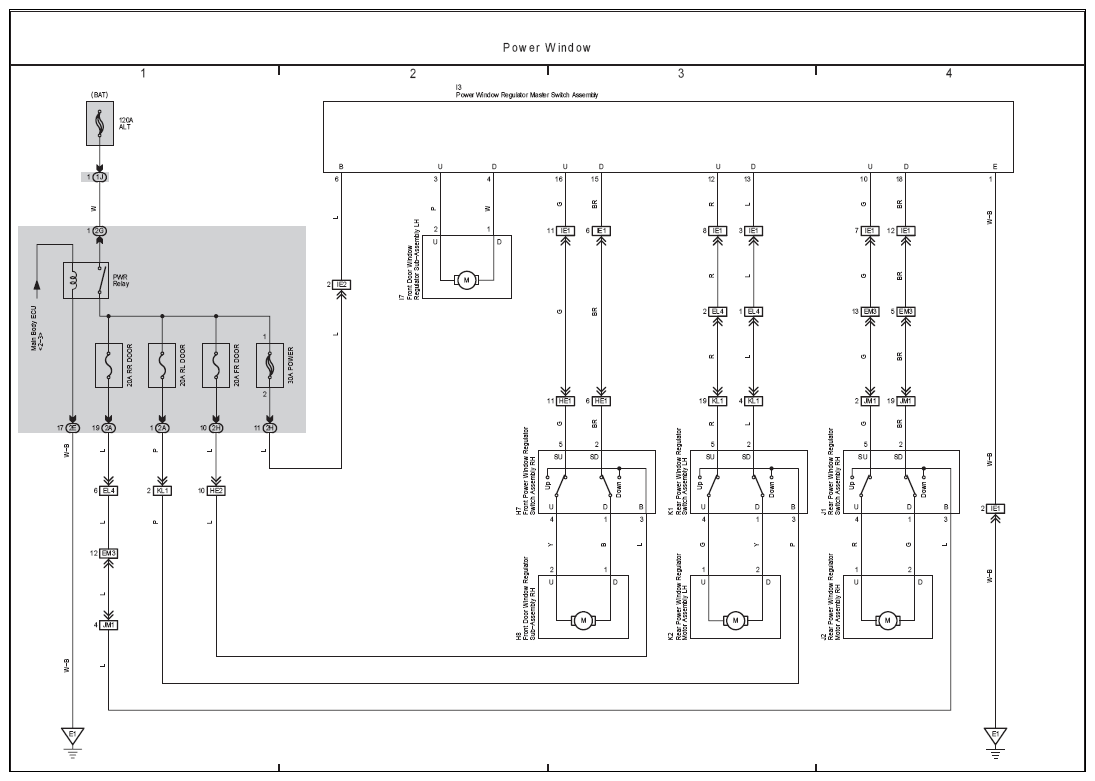

Fig 1: Power Window Electrical Wiring Diagram

G07115335

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
