Corolla S, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Power Seat (Except TMC Made); Seat Heater (Except TMC Made)
Power Seat (Except TMC Made); Seat Heater (Except TMC Made)

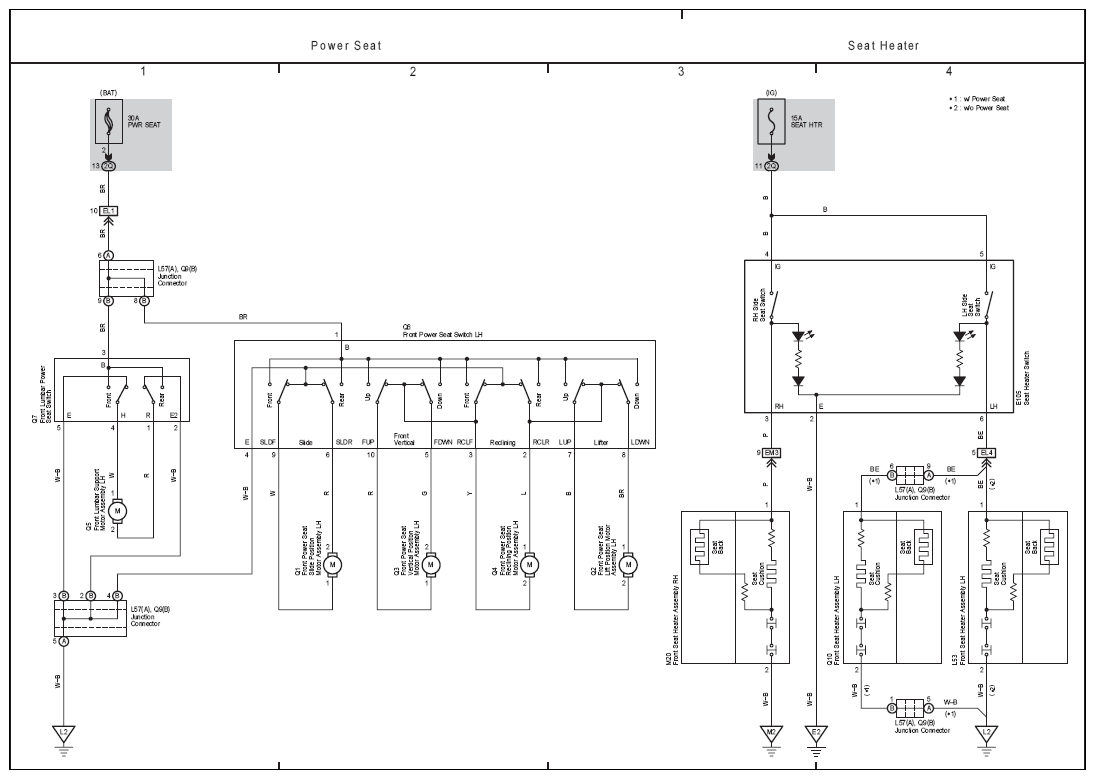

Fig 1: Power Seat And Seat Heater Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
