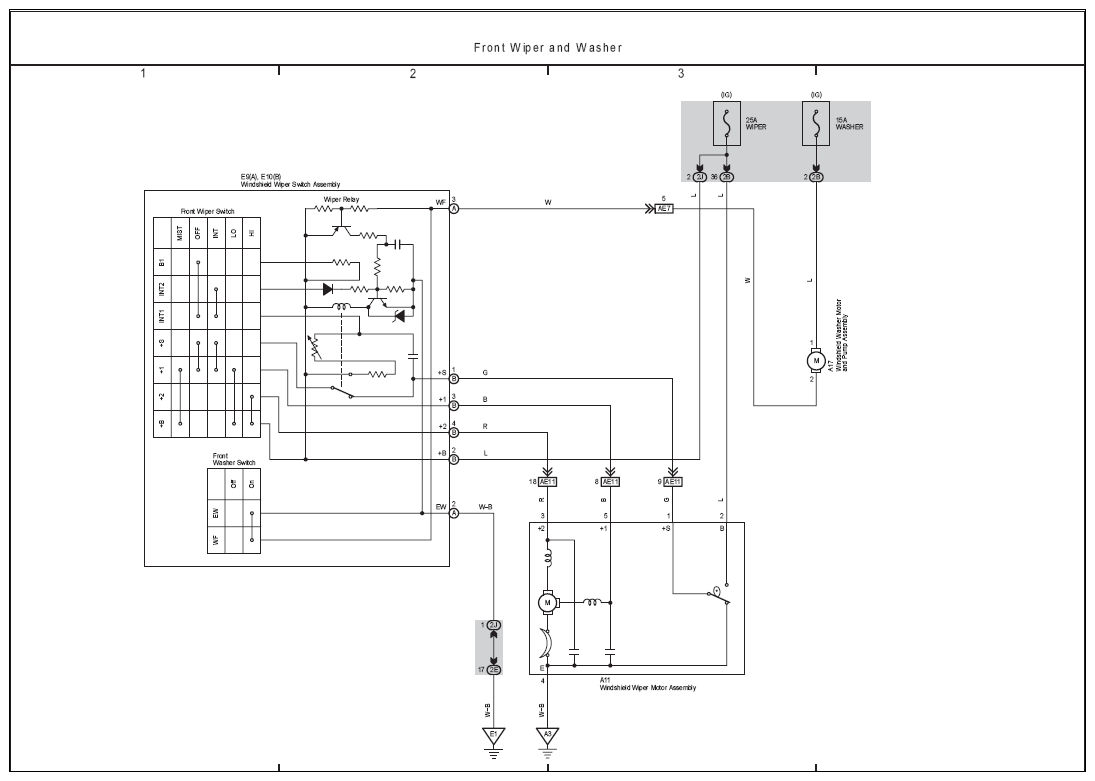

Home >> Toyota >> 2011 >> Corolla S, Automatic >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Overall Electrical Wiring Diagram >> Overall Electrical Wiring Diagram >> Front Wiper and Washer (TMC Made)
