Front Fog Light (Except TMC Made)

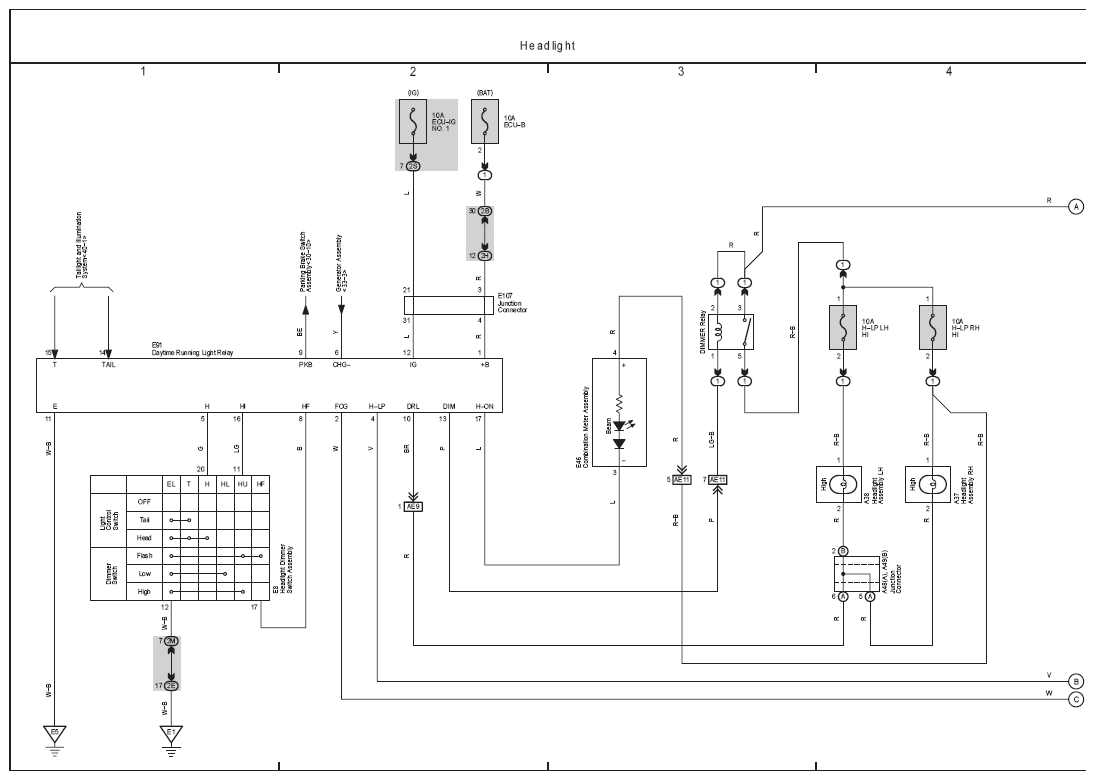

Fig 1: Headlight Electrical Wiring Diagram
G07115378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

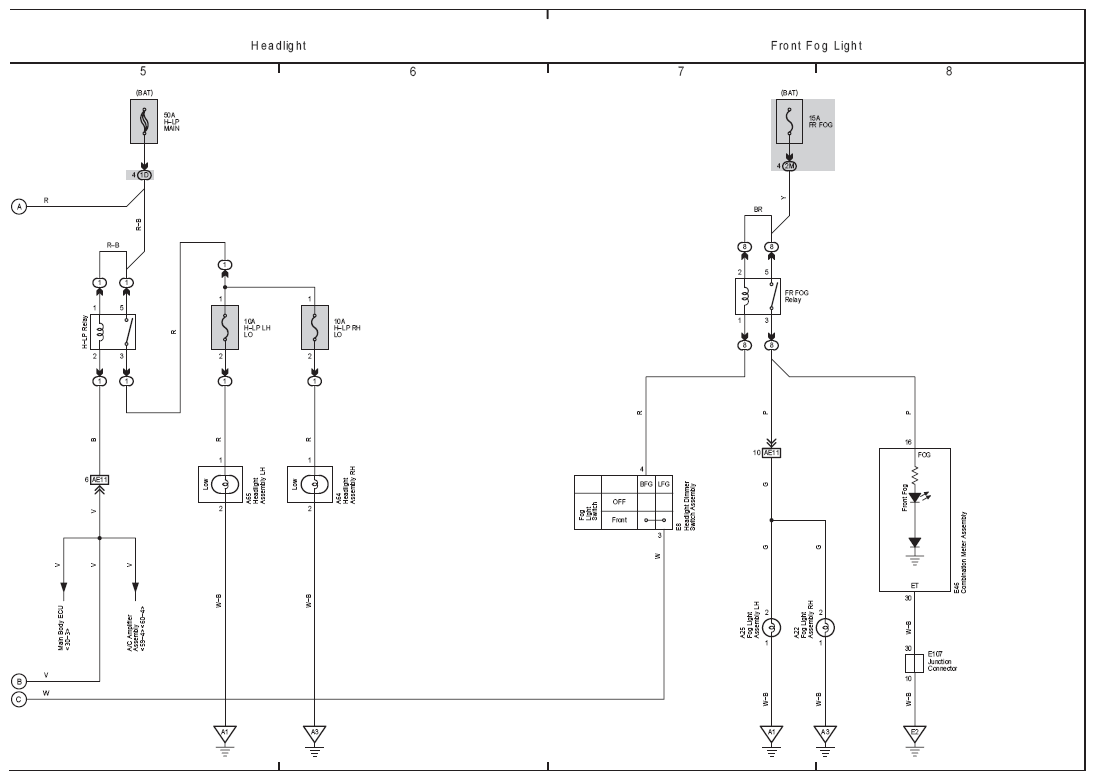

Fig 2: Headlight And Front Fog Light Electrical Wiring Diagram
G07115379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
