Data Link Connector 3 (TMC Made); Engine Immobiliser System (TMC Made)

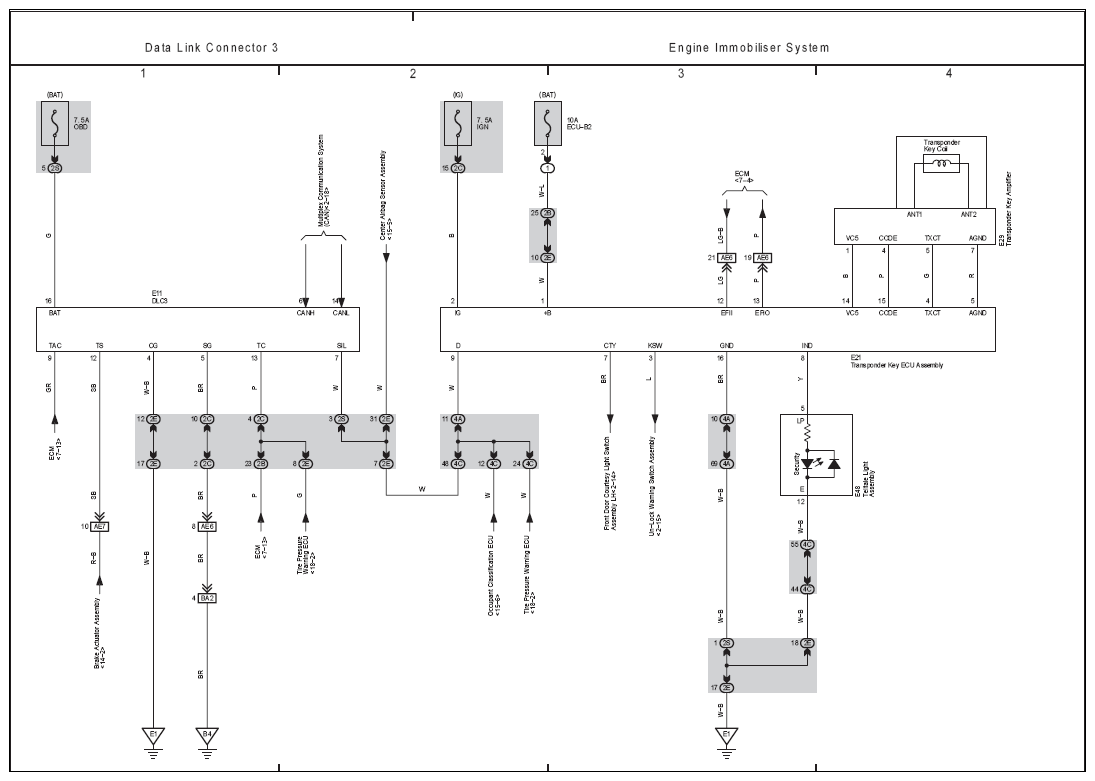

Fig 1: Data Link Connector 3 And Engine Immobiliser System Electrical Wiring Diagram
G07115322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
