Data Link Connector 3 (Except TMC Made); Engine Immobiliser System (w/o Smart Key System) (Except TMC Made)

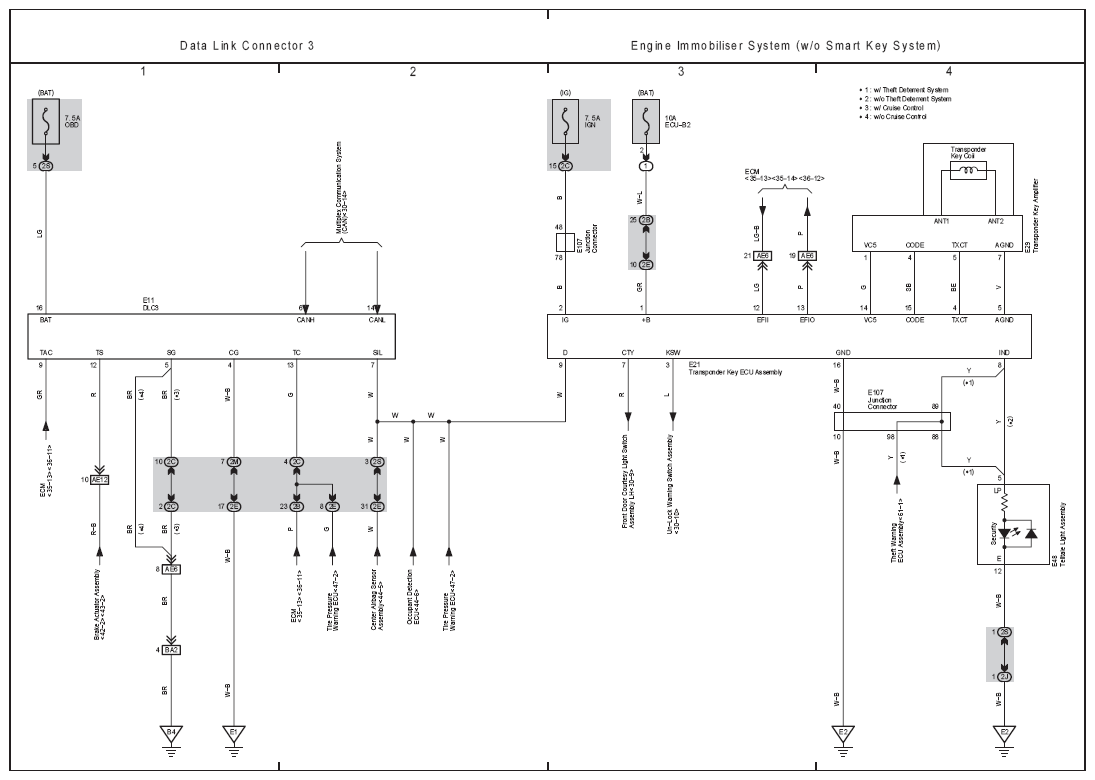

Fig 1: Data Link Connector 3 And Engine Immobiliser System (w/o Smart Key System) Electrical Wiring Diagram
G07115377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
