Cruise Control (TMC Made); Electronically Controlled Transmission and A/T Indicator (TMC Made); Engine Control (TMC Made)

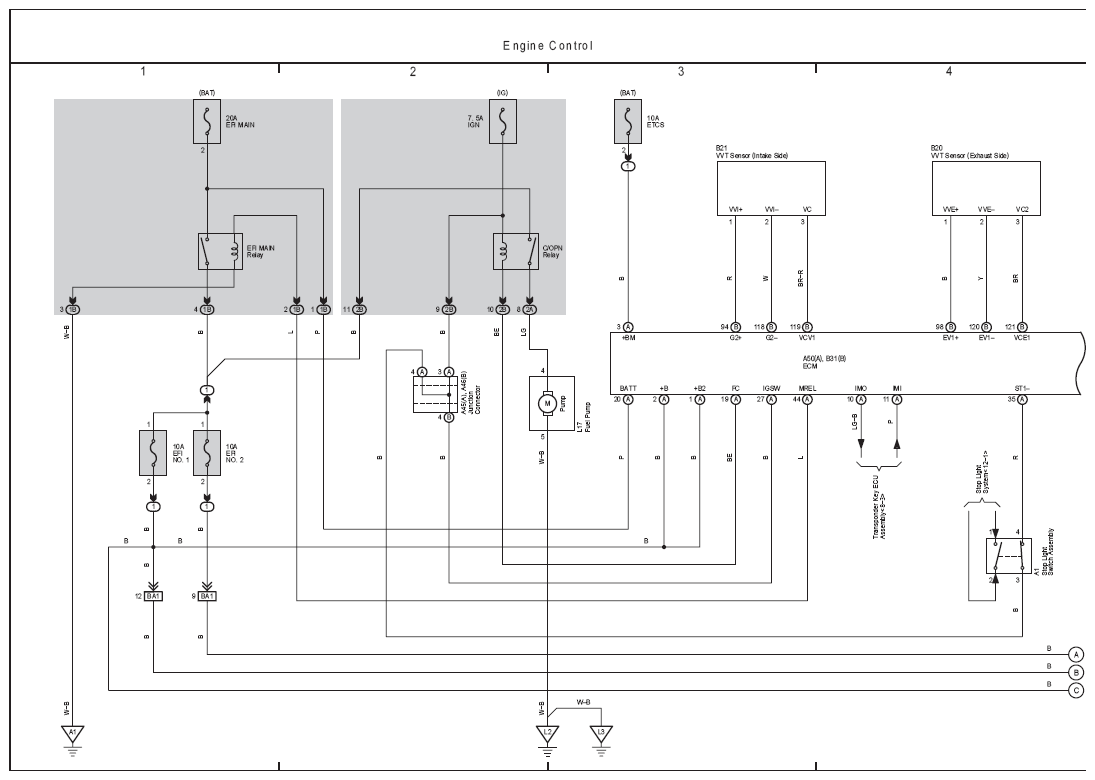

Fig 1: Engine Control Electrical Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

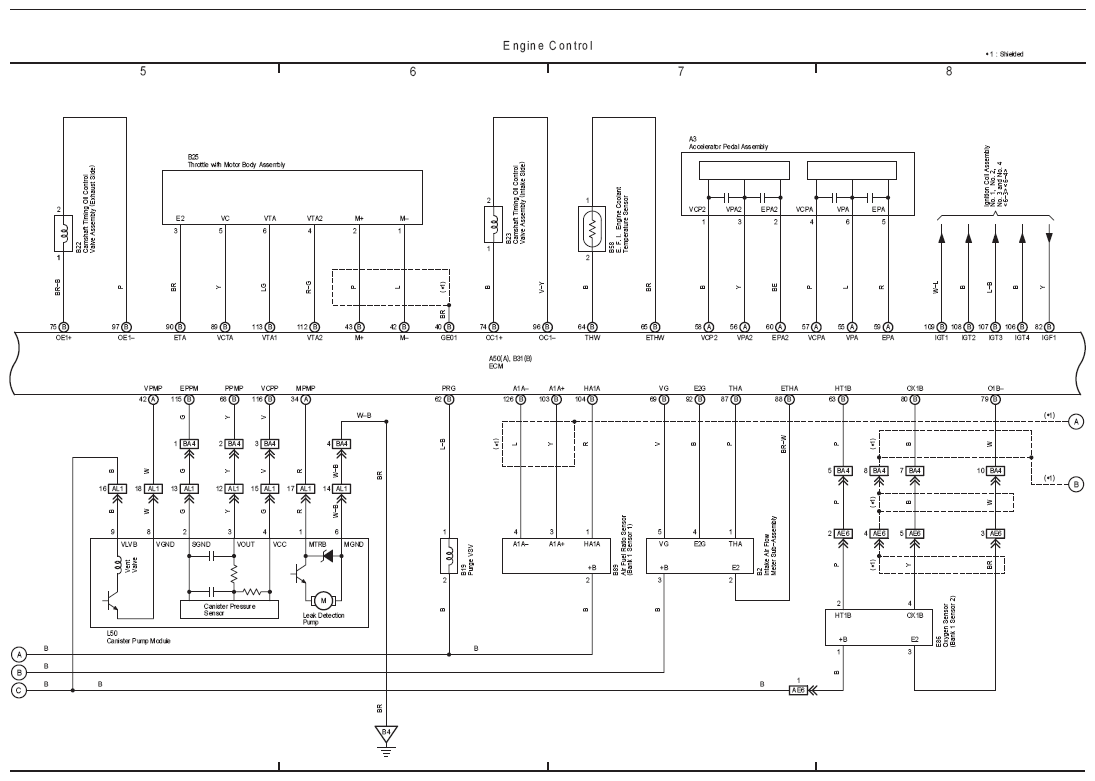

Fig 2: Engine Control Electrical Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

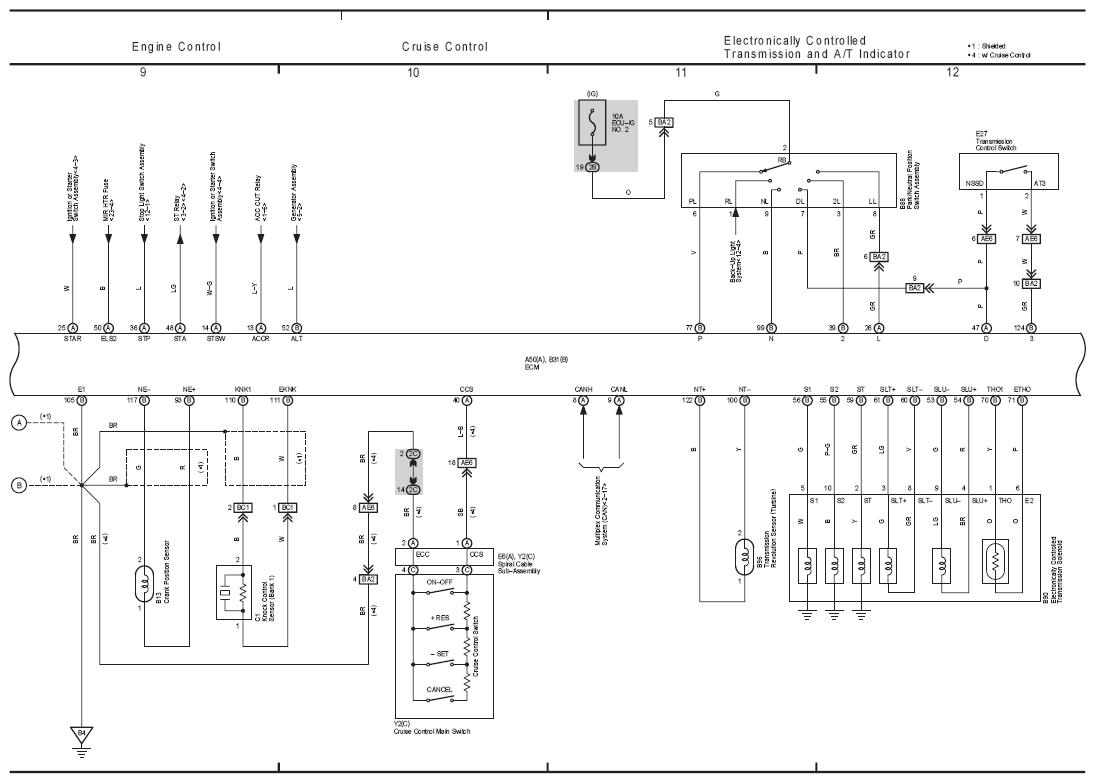

Fig 3: Cruise Control Electrical Wiring Diagram

Fig 4: Electronically Controlled Transmission And A/T Indicator Electrical Wiring Diagram
