Cruise Control (2AZ-FE) (Except TMC Made); Electronically Controlled Transmission and A/T Indicator (2AZ-FE) (Except TMC Made); Engine Control (2AZ-FE) (Except TMC Made)

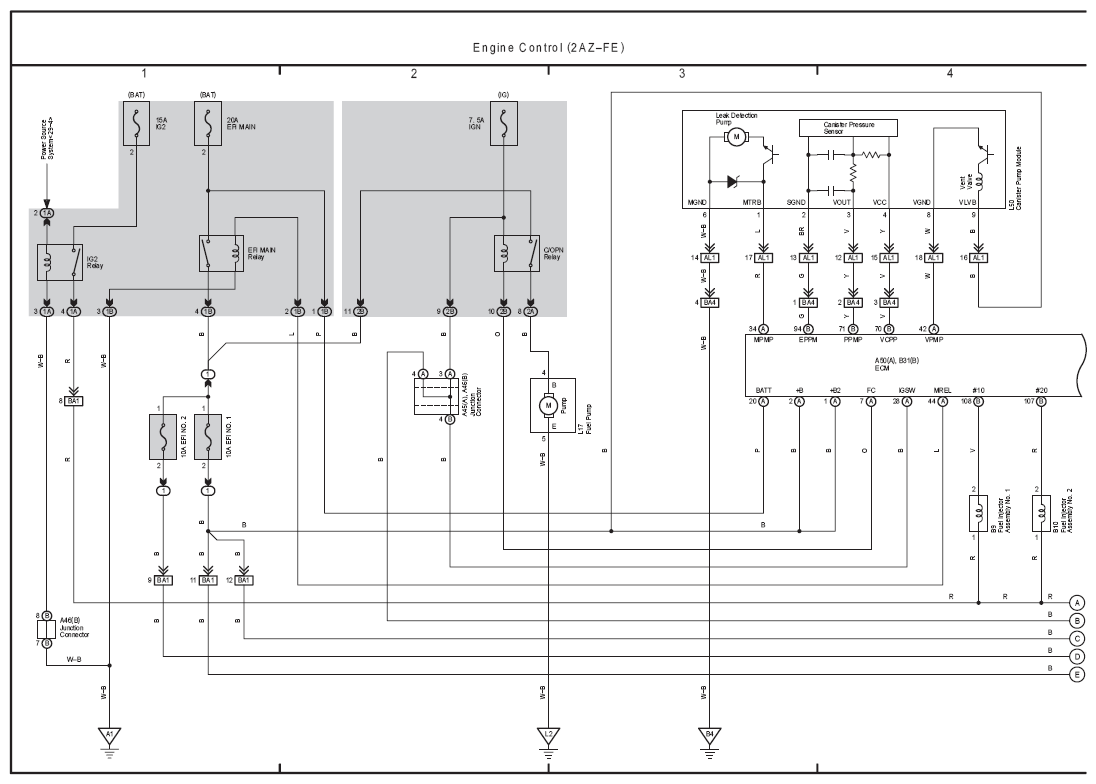

Fig 1: Engine Control (2AZ-FE) Electrical Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

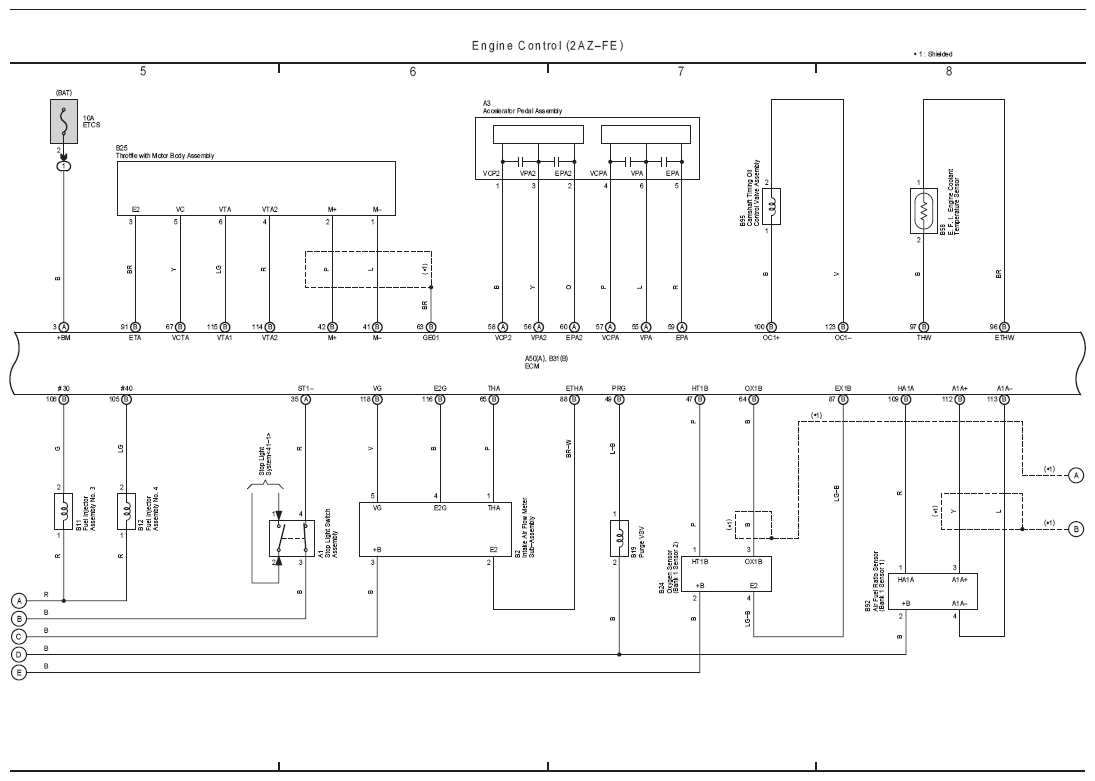

Fig 2: Engine Control (2AZ-FE) Electrical Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

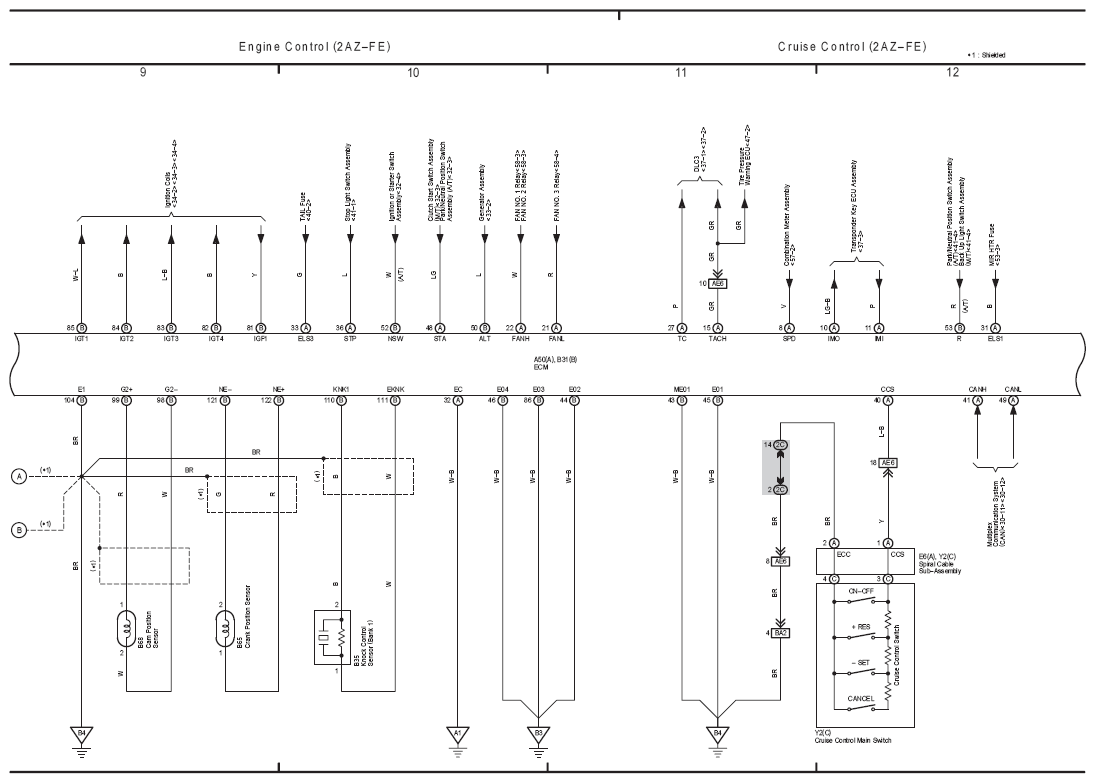

Fig 3: Engine Control (2AZ-FE) And Cruise Control (2AZ-FE) Electrical Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

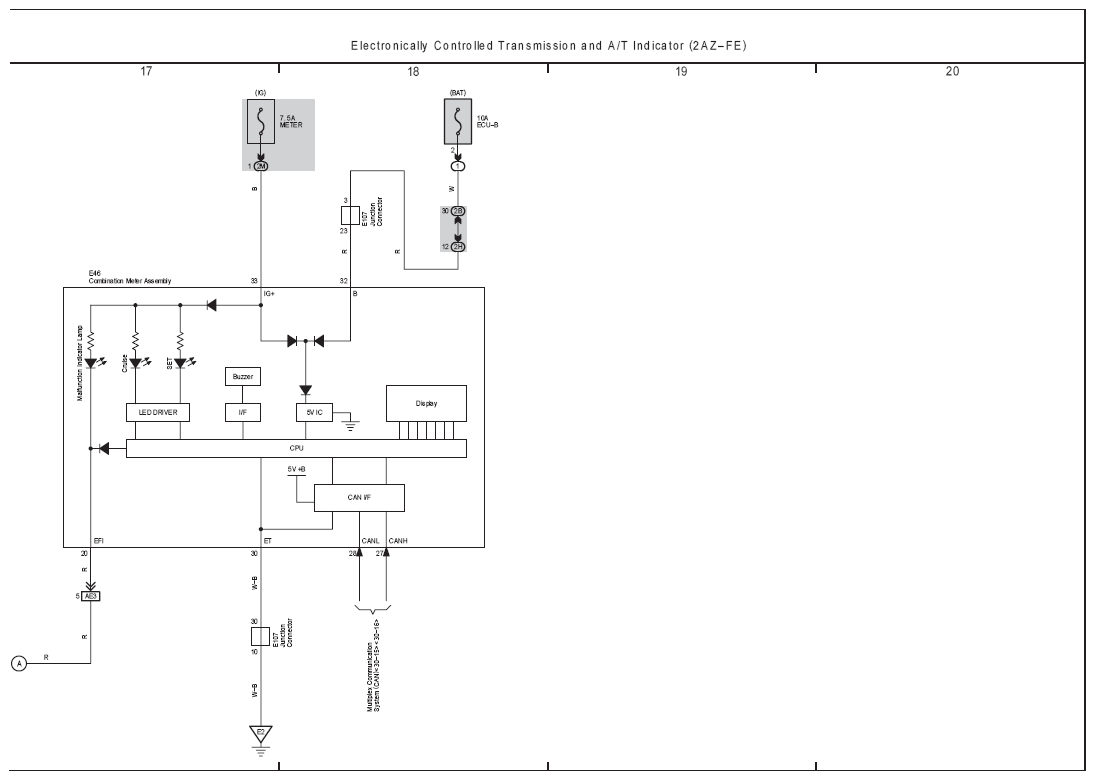

Fig 4: Electronically Controlled Transmission And A/T Indicator (2AZ-FE) Electrical Wiring Diagram (1 Of 2)

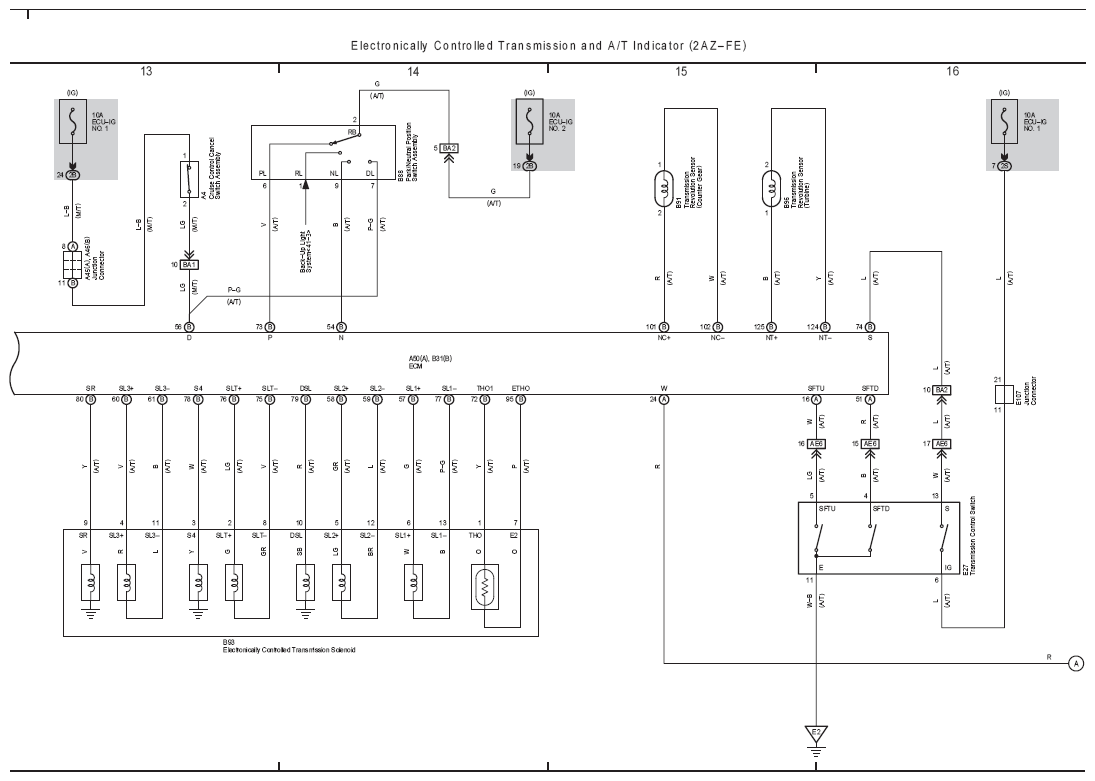

Fig 5: Electronically Controlled Transmission And A/T Indicator (2AZ-FE) Electrical Wiring Diagram (2 Of 2)
