Overall Electrical Wiring Diagram
>>
Cooling Fan (TMC Made); Power Outlet (TMC Made)
Cooling Fan (TMC Made); Power Outlet (TMC Made)

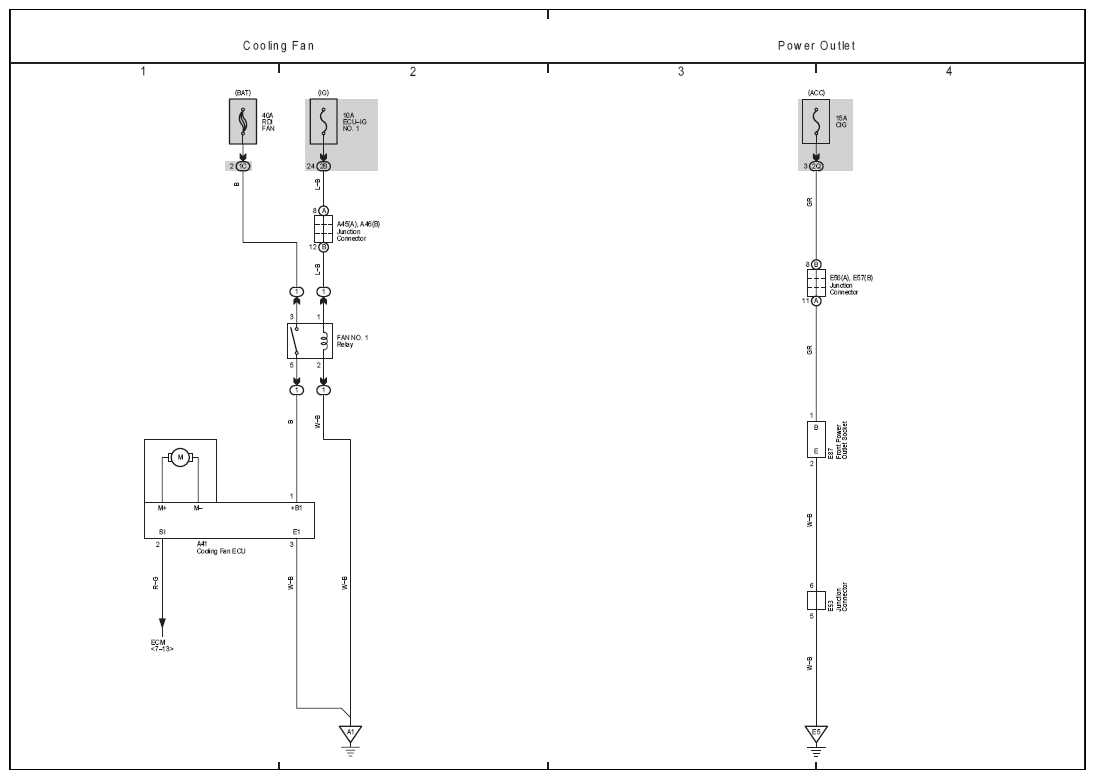

Fig 1: Cooling Fan And Power Outlet Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
