Cooling Fan (2AZ-FE) (Except TMC Made); Cooling Fan (2ZR-FE) (Except TMC Made)

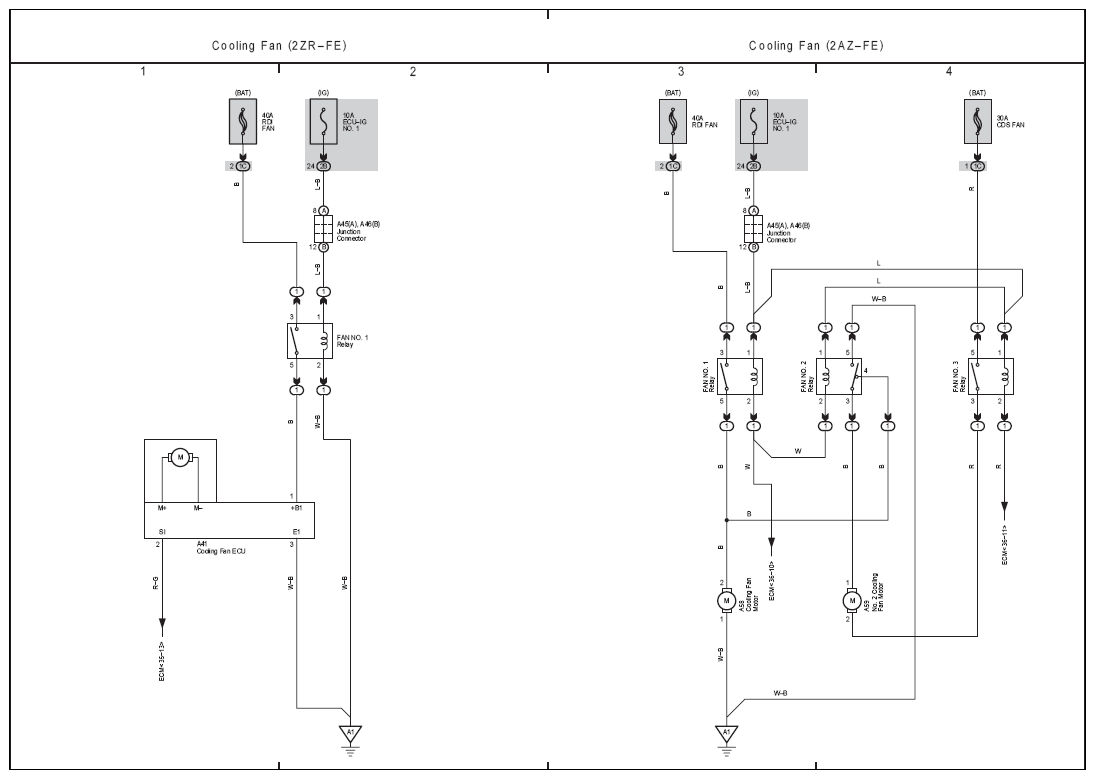

Fig 1: Cooling Fan (2ZR-FE) And Cooling Fan (2AZ-FE) Electrical Wiring Diagram
G07115406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
