Combination Meter (Except TMC Made)

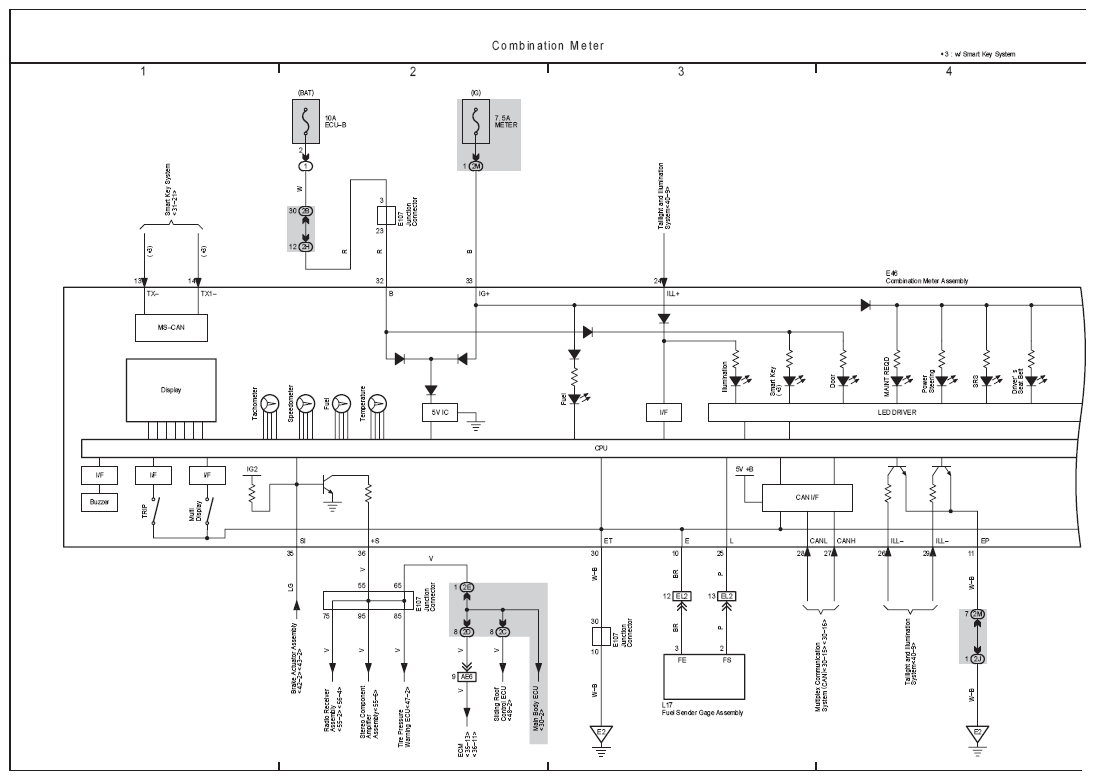

Fig 1: Combination Meter Electrical Wiring Diagram (1 Of 2)
G07115404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

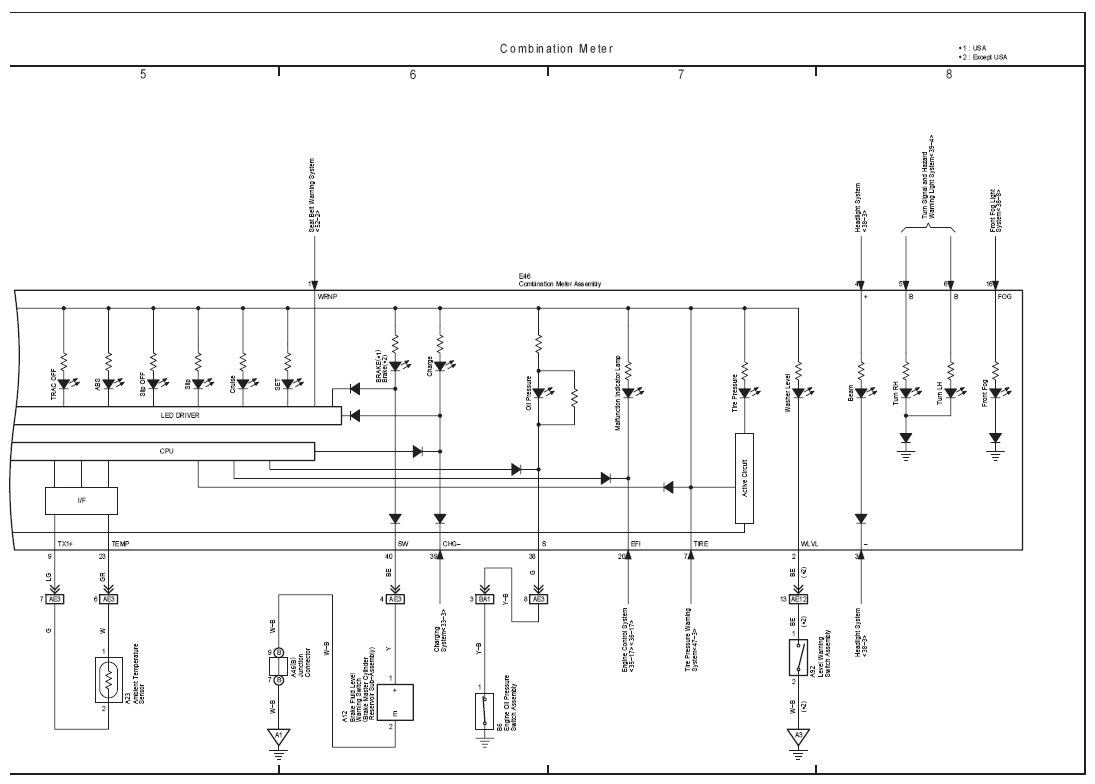

Fig 2: Combination Meter Electrical Wiring Diagram (2 Of 2)
G07115405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
