OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Back-Up Light (TMC Made); Stop Light (TMC Made)
Back-Up Light (TMC Made); Stop Light (TMC Made)

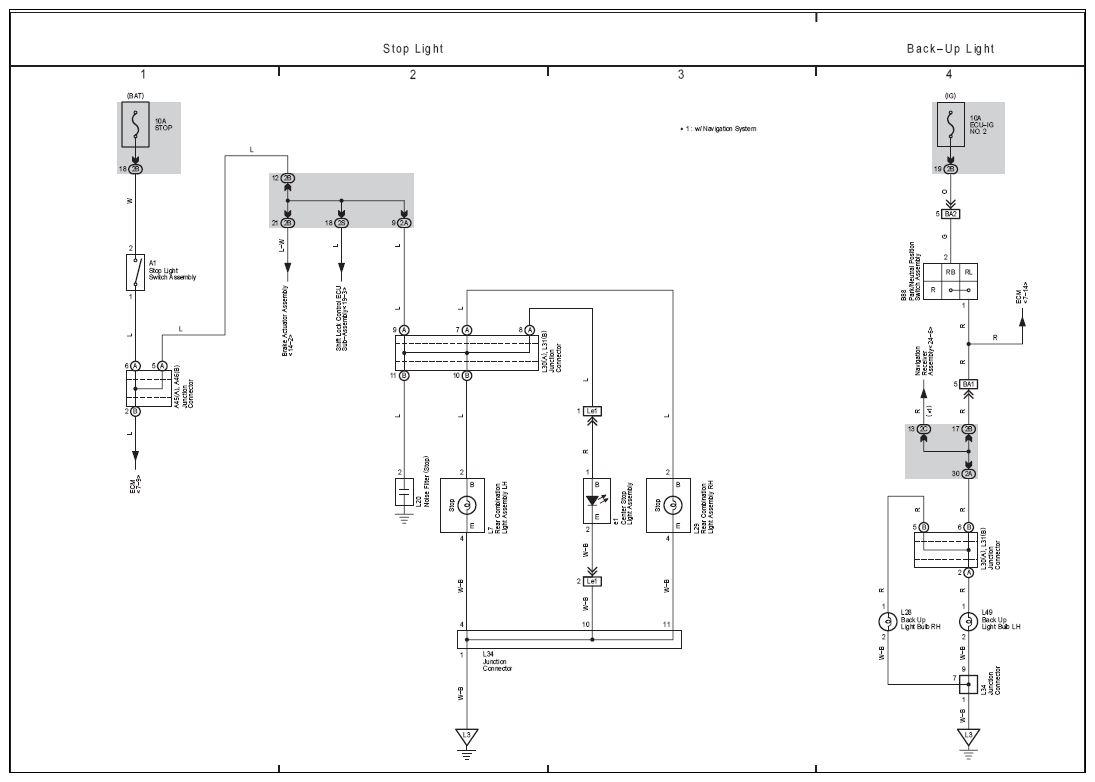

Fig 1: Stop Light And Back-Up Light Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
