Back-Up Light (Except TMC Made); Stop Light (Except TMC Made)

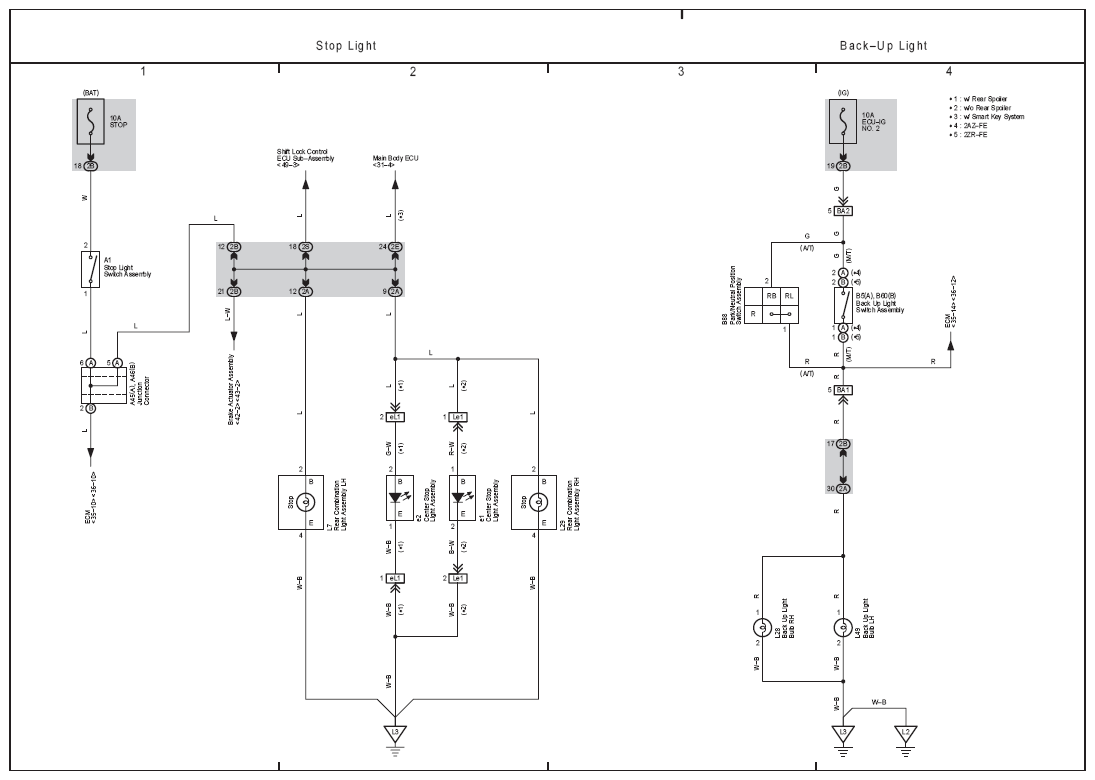

Fig 1: Stop Light And Back-Up Light Electrical Wiring Diagram

G07115384

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
