Audio System (TMC Made); Navigation System (TMC Made)

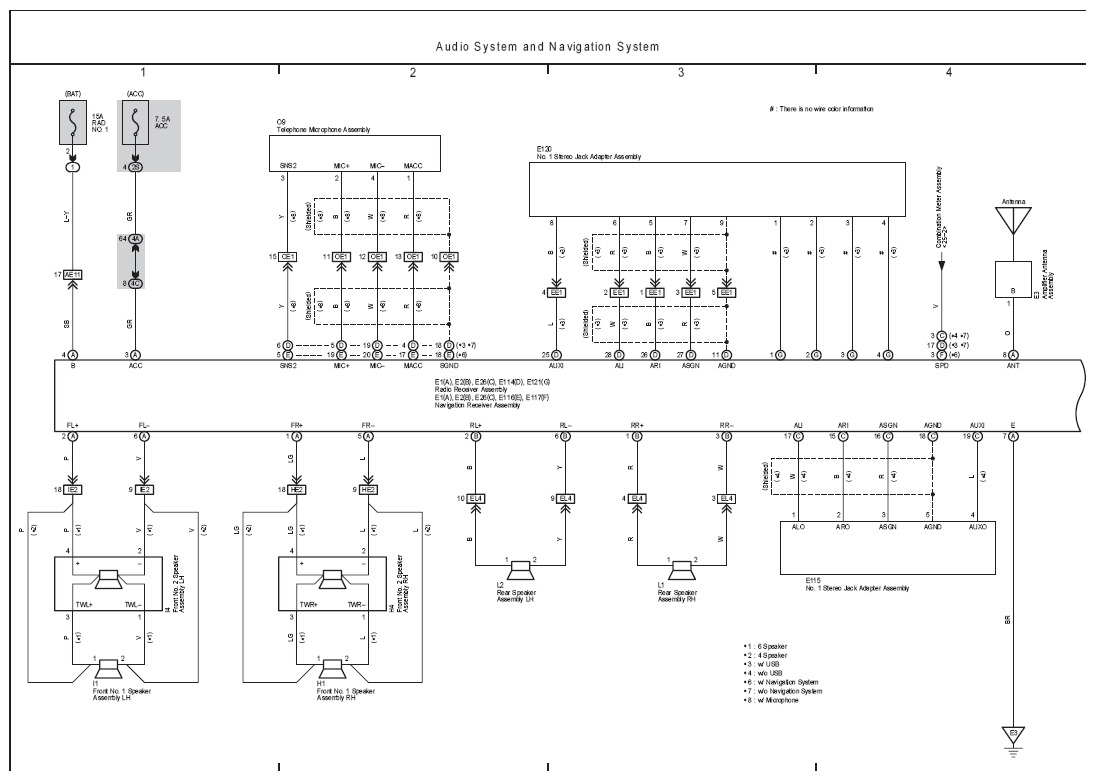

Fig 1: Audio System And Navigation System Electrical Wiring Diagram (1 Of 2)
G07115343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

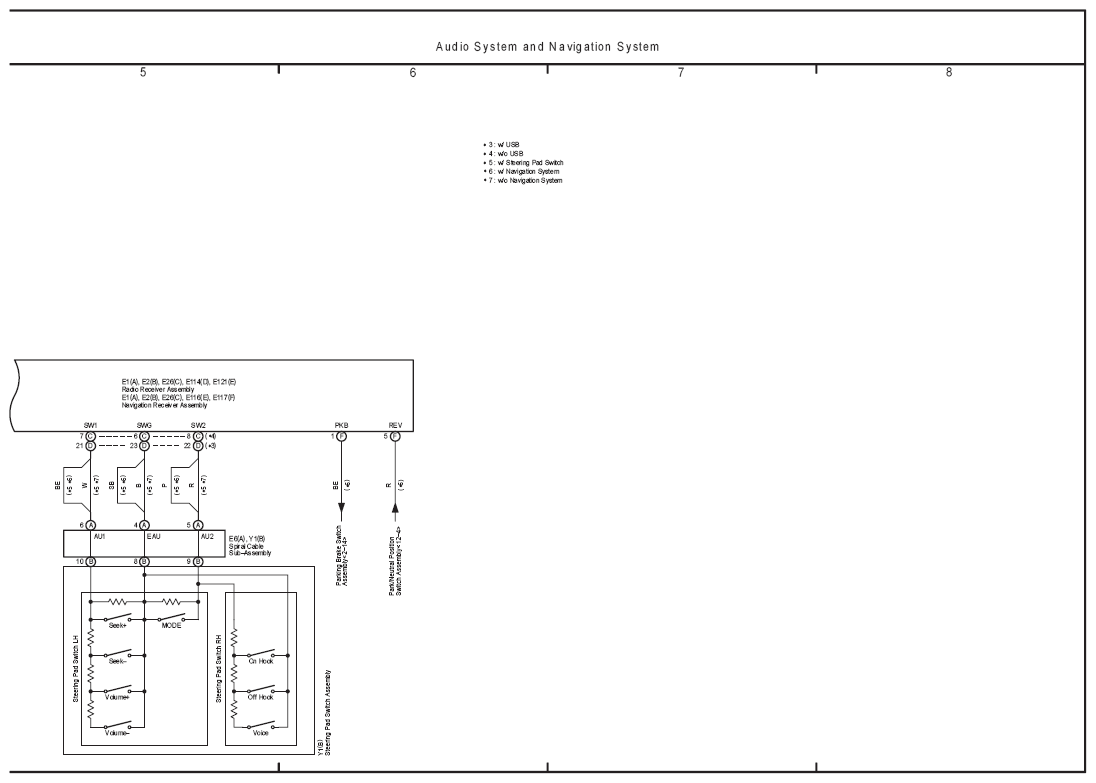

Fig 2: Audio System And Navigation System Electrical Wiring Diagram (2 Of 2)
G07115344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
