ABS (w/VSC) (Except TMC Made); TRAC (Except TMC Made); VSC (Except TMC Made)

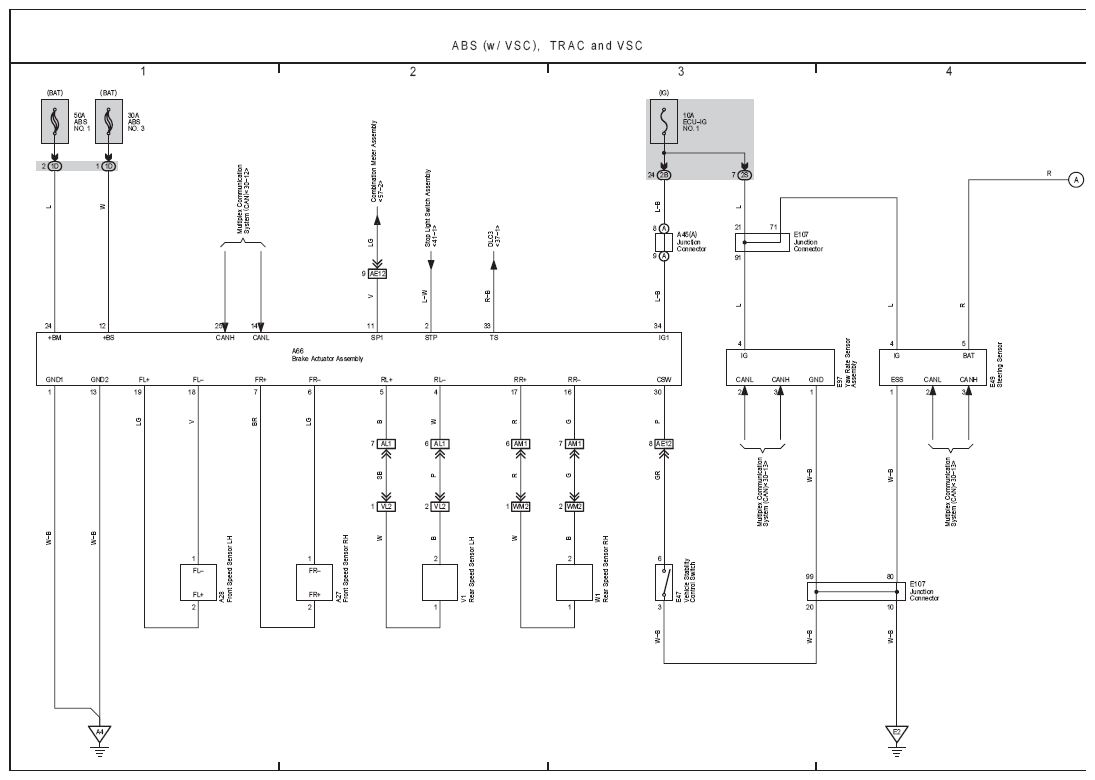

Fig 1: ABS (w/VSC) TRAC And VSC Electrical Wiring Diagram (1 Of 2)
G07115385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

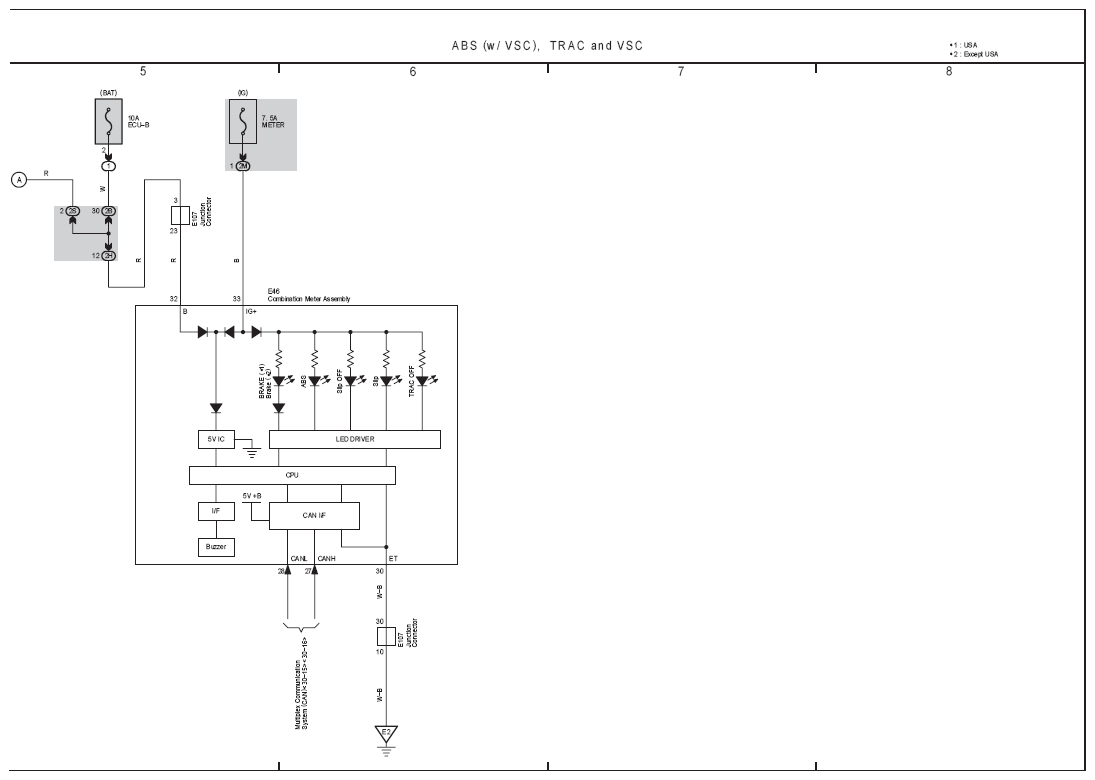

Fig 2: ABS (w/VSC) TRAC And VSC Electrical Wiring Diagram (2 Of 2)
G07115386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
