ABS (TMC Made); TRAC (TMC Made); VSC (TMC Made)

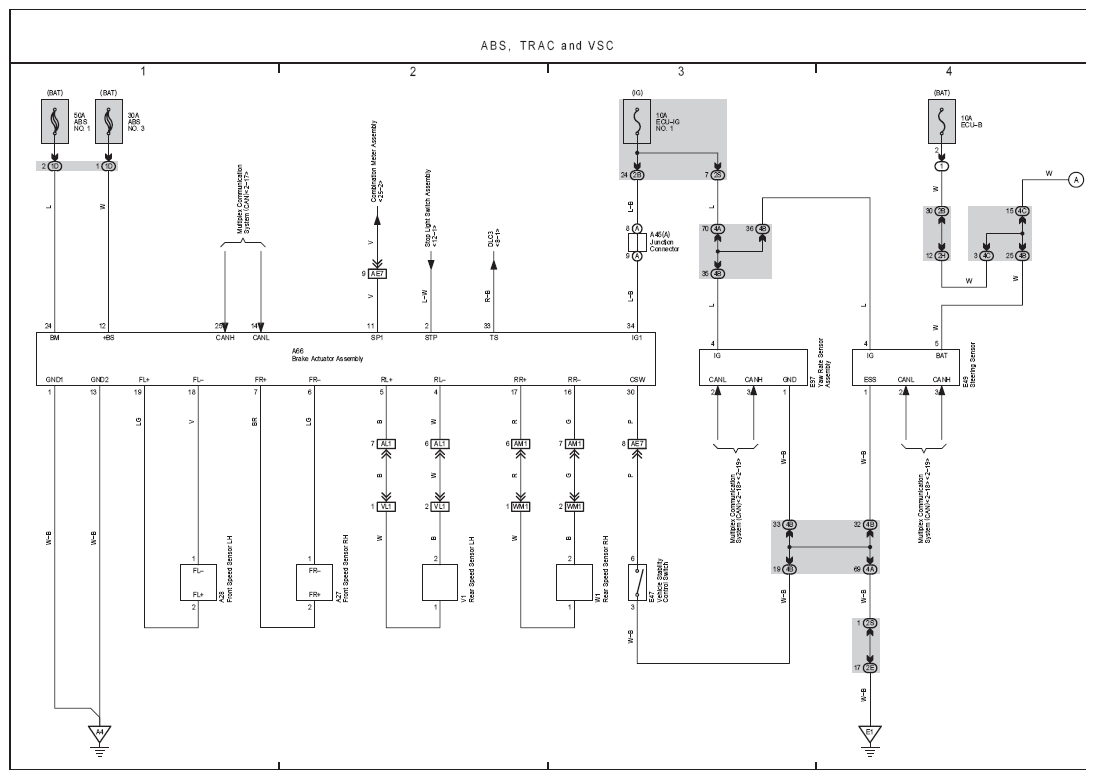

Fig 1: ABS, TRAC And VSC Electrical Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

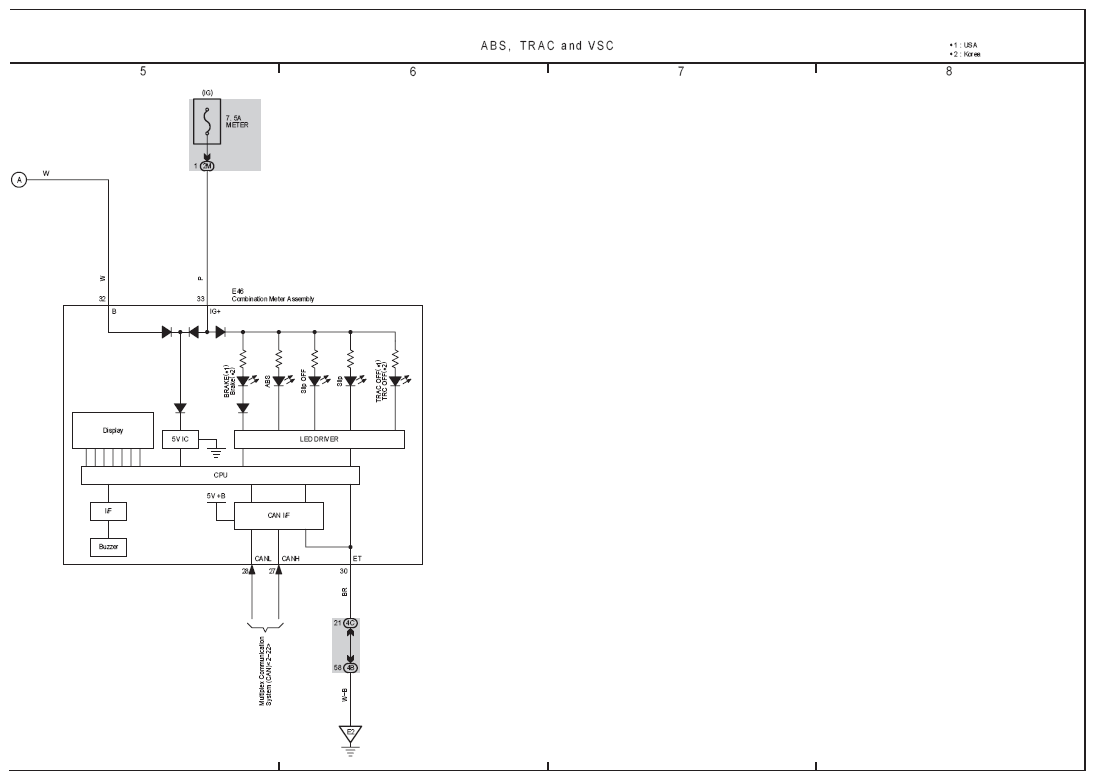

Fig 2: ABS, TRAC And VSC Electrical Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
