SRS Warning Light Remains ON: Wiring Diagram

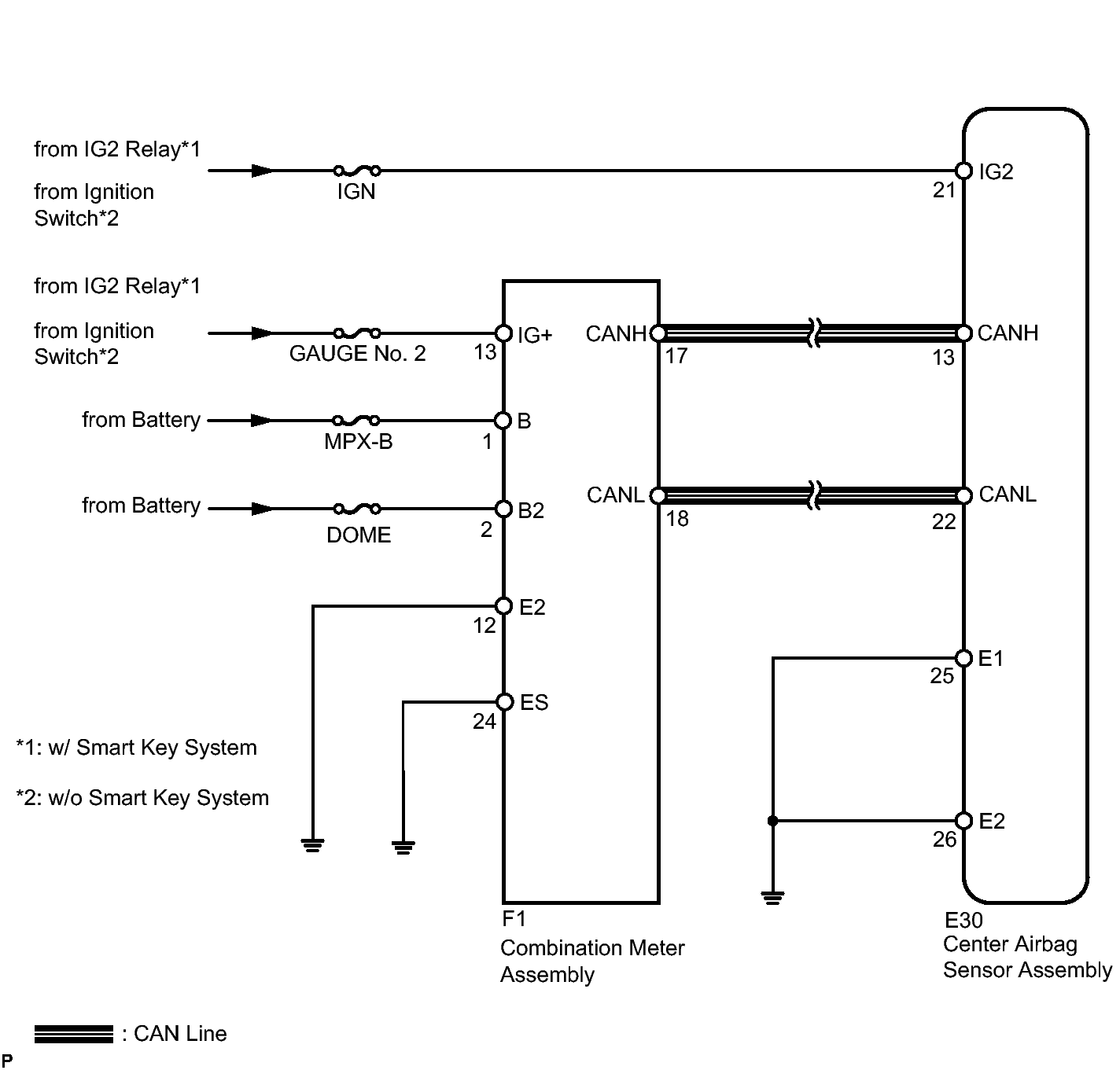

Fig 1: Identifying SRS Warning Light Wiring Diagram

GTY291875

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
