DTC B1650/32: Occupant Classification System Malfunction: Wiring Diagram

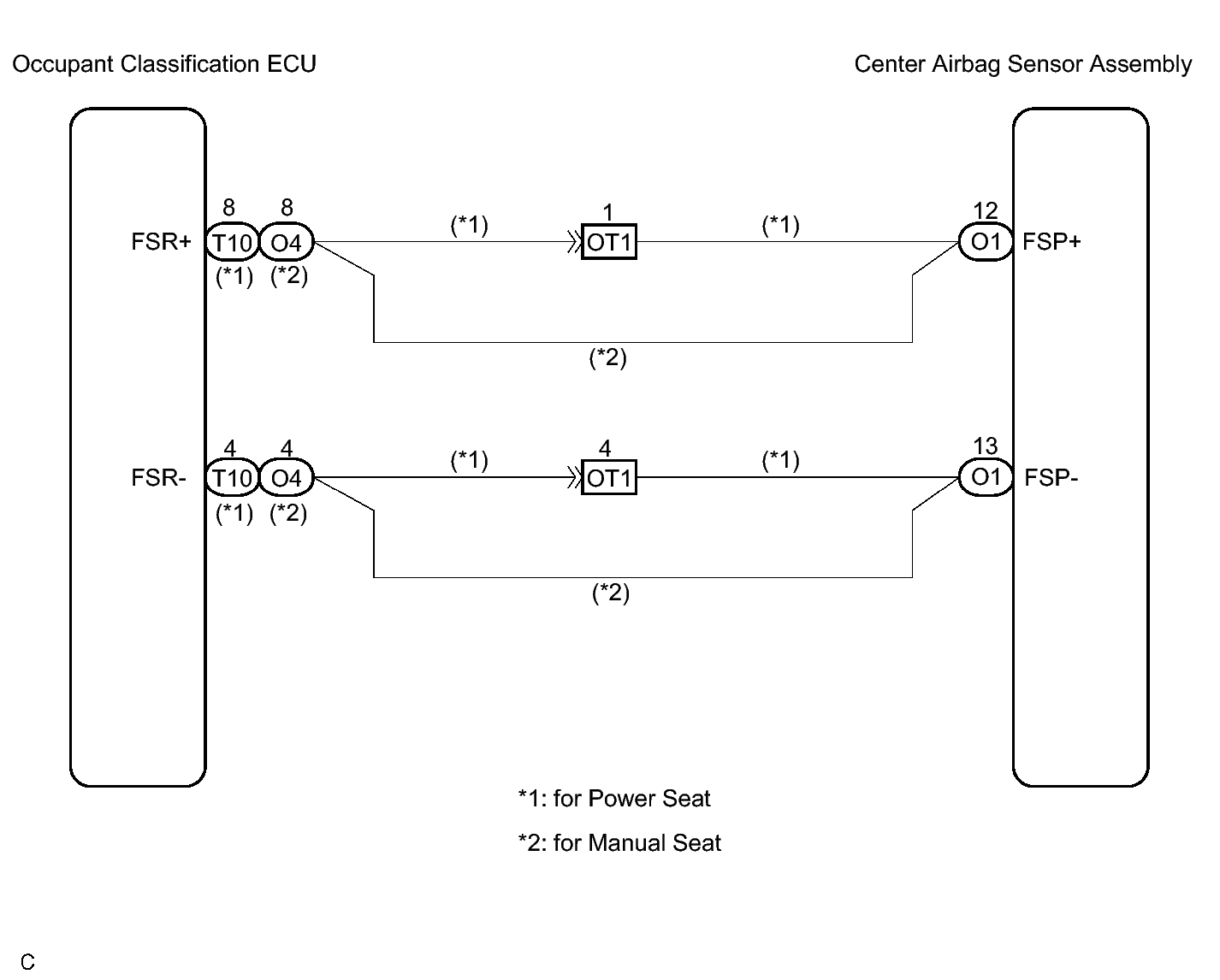

Fig 1: Identifying Occupant Classification ECU - Wiring Diagram

GTY210103

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
