DTC B1620/21: Driver Side - Side Airbag Sensor Malfunction: Wiring Diagram

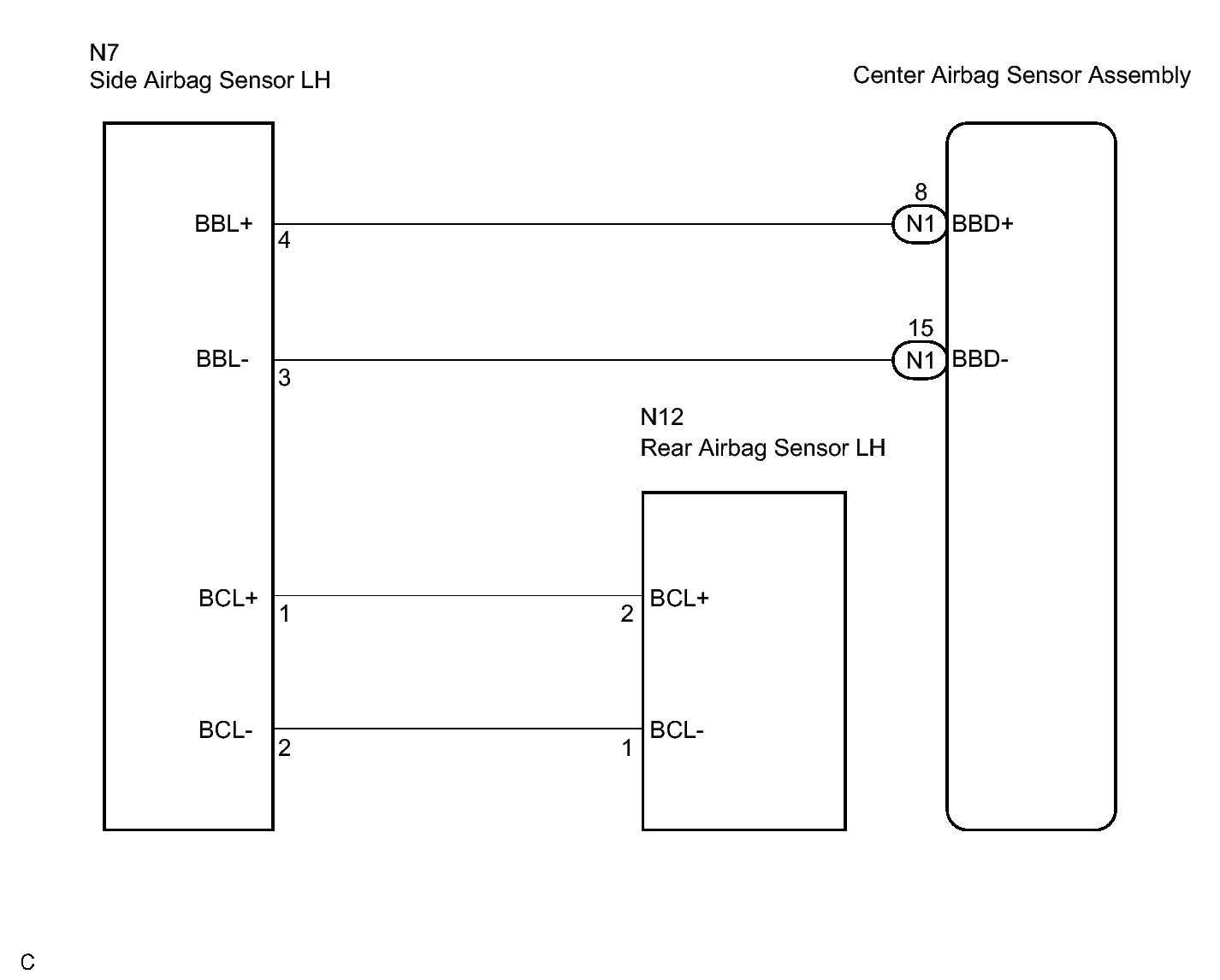

Fig 1: Identifying Driver Side - Side Airbag Sensor Malfunction -- Wiring Diagram
GTY210098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
