DTC B1615/14: Front Airbag Sensor LH Malfunction: Wiring Diagram

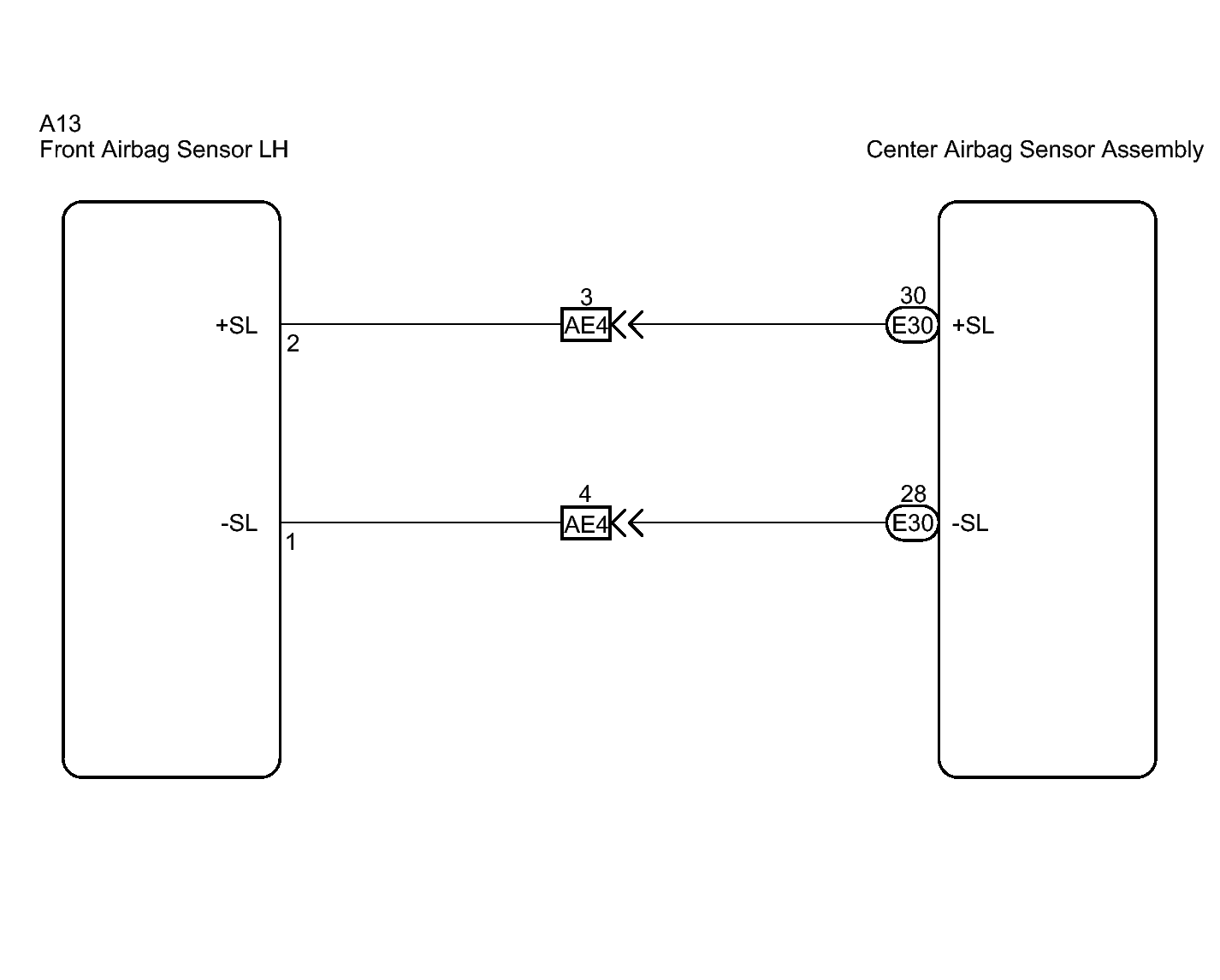

Fig 1: Identifying Front Airbag Sensor LH - Wiring Diagram

GTY210036

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
