DTC B1610/13: Front Airbag Sensor RH Malfunction: Wiring Diagram

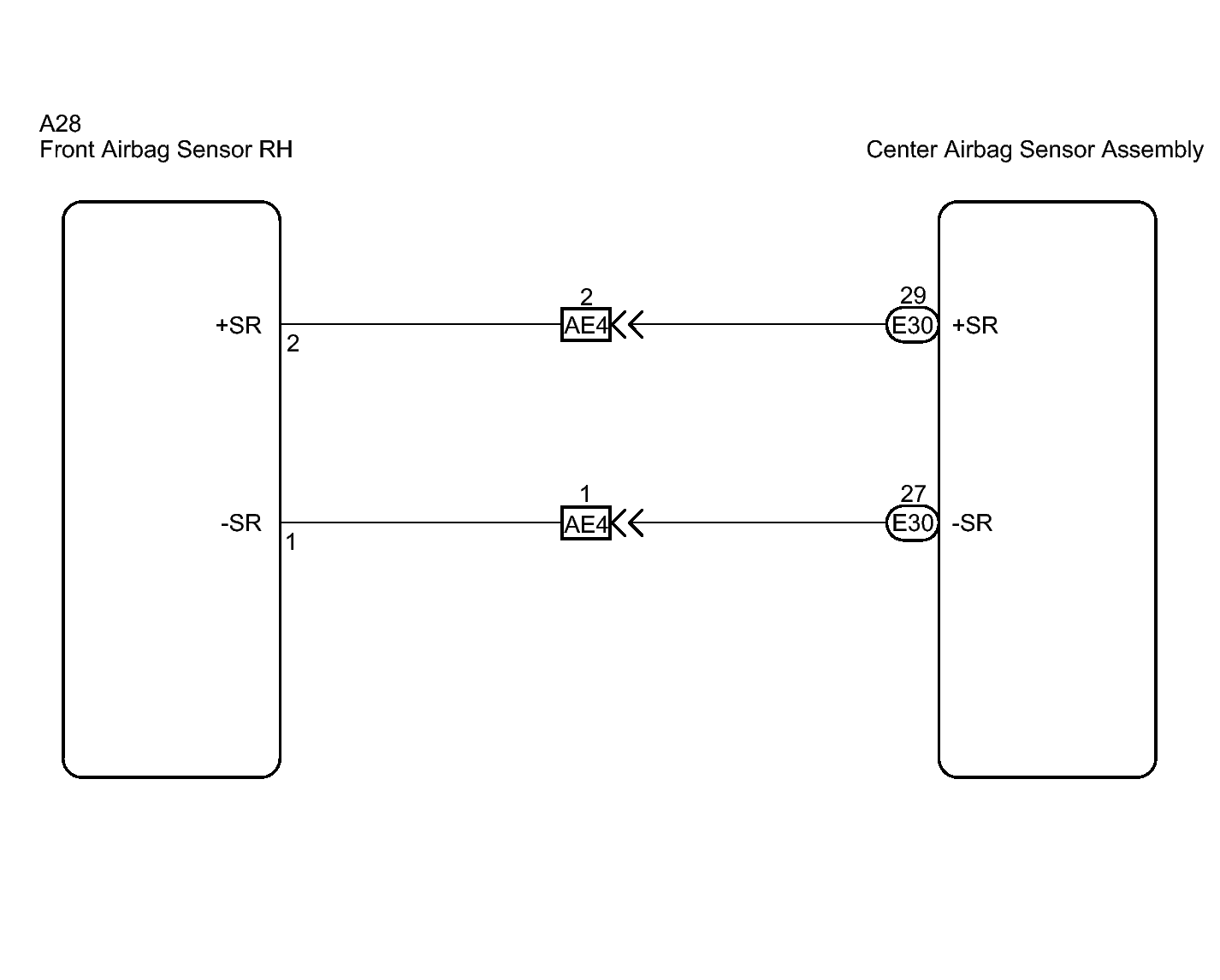

Fig 1: Identifying Front Airbag Sensor RH - Wiring Diagram

GTY210035

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
