DTC P0A1B-168: Drive Motor "A" Control Module; DTC P0A1B-795: Drive Motor "A" Control Module; DTC P0A1B-796: Drive Motor "A" Control Module: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

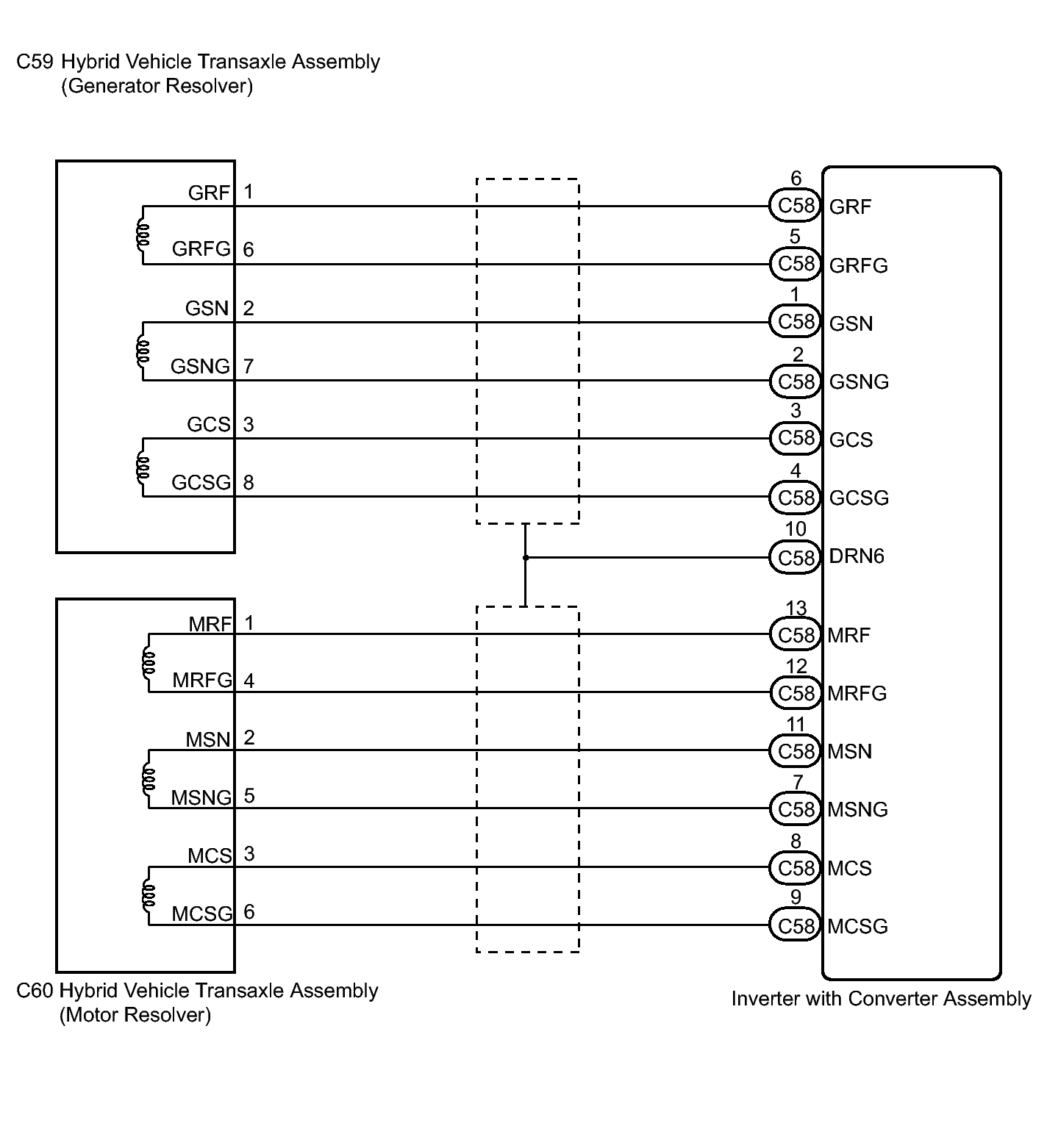

Fig 1: Identifying Drive Motor "A" Control Module Wiring Diagram
GTY293941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
