DTC P0A0F-238: Engine Failed to Start: Description

WARNING: This page is about a different variant/trim than selected.

The hybrid vehicle control ECU detects this DTC and effects fail-safe control if the engine or transaxle gear has seized up, or foreign objects have been caught in either of them.

DTC No.	INF Code	DTC Detection Condition	Trouble Area
P0A0F	238	Engine does not start even though cranking it (transaxle input malfunction [engine system])	Engine Hybrid vehicle transaxle assembly (shaft, gear) Transmission input damper assembly Wire harness or connector Hybrid vehicle control ECU

HINT:

If this DTC is output, the engine or transaxle gear may be seized up. Be sure to check the level of the engine oil, transaxle oil (ATF), and coolant before inspection.

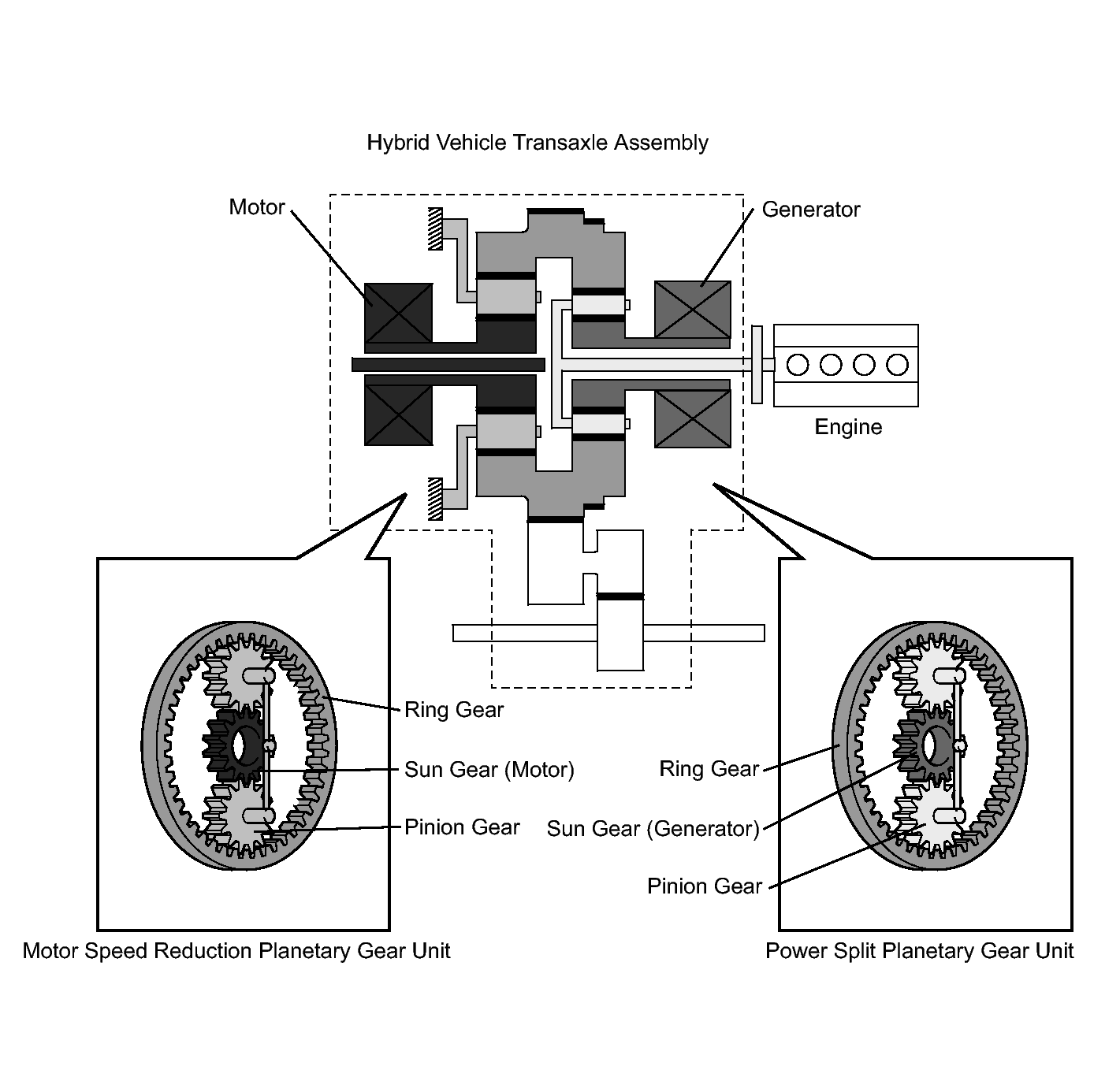

Fig 1: Identifying Mechanism Schematic Of Hybrid Vehicle Transaxle Assembly
