Section 67 (Hybrid Vehicle Control System (P311) (Hybrid) (Diagnostic Codes (P0343-747 - P0A78-282))
>>
Hybrid Control System
>>
DTC P0A08-264: DC / DC Converter Status Circuit
>>
Wiring Diagram
DTC P0A08-264: DC / DC Converter Status Circuit: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

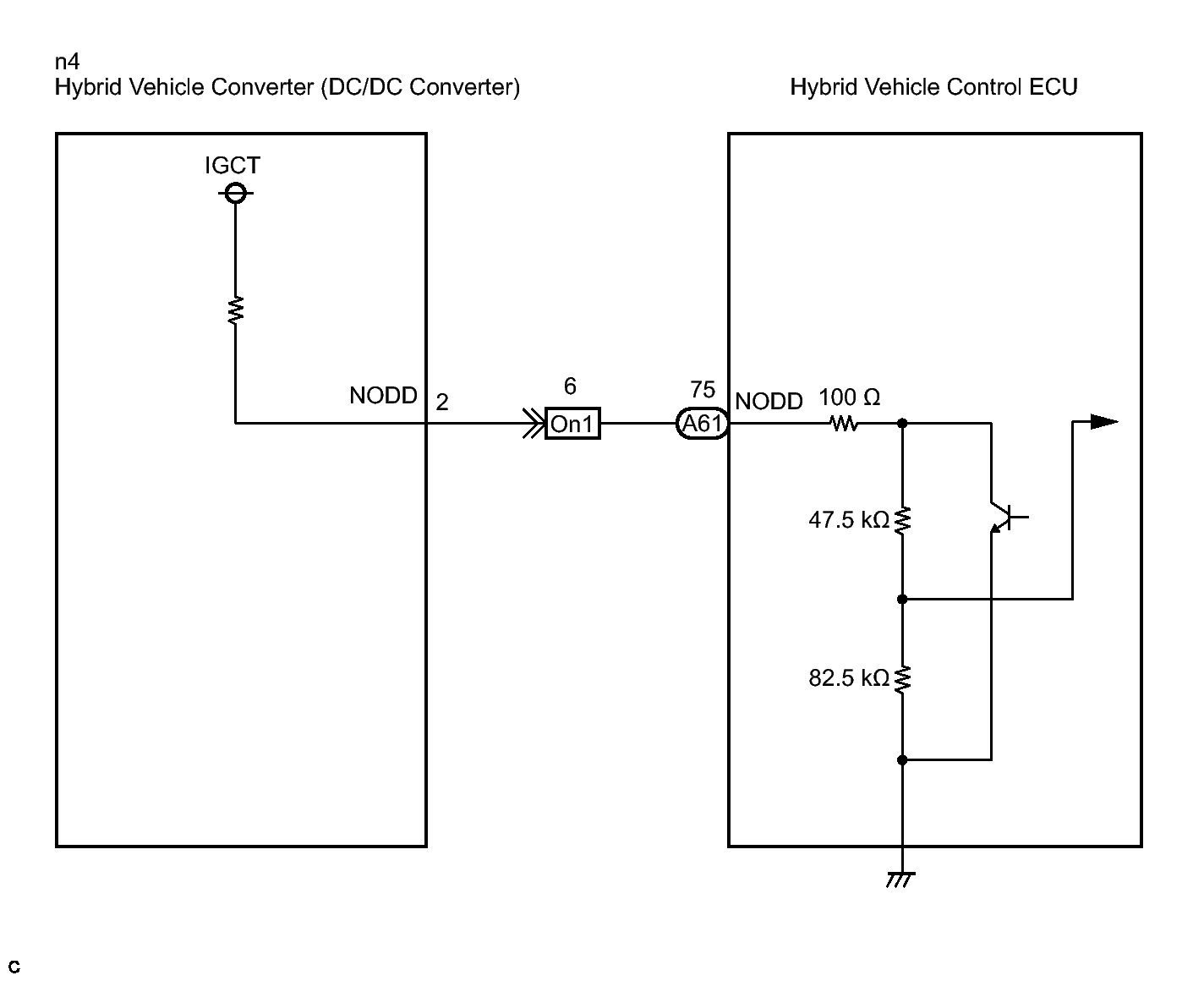

Fig 1: Identifying Hybrid Vehicle Converter (DC/DC Converter) Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
