DTC P0A08-101: DC / DC Converter Status Circuit: Description

WARNING: This page is about a different variant/trim than selected.

The cooling fan of the HV battery and cooling fan in the hybrid vehicle converter are used to cool the hybrid vehicle converter (DC/DC converter).

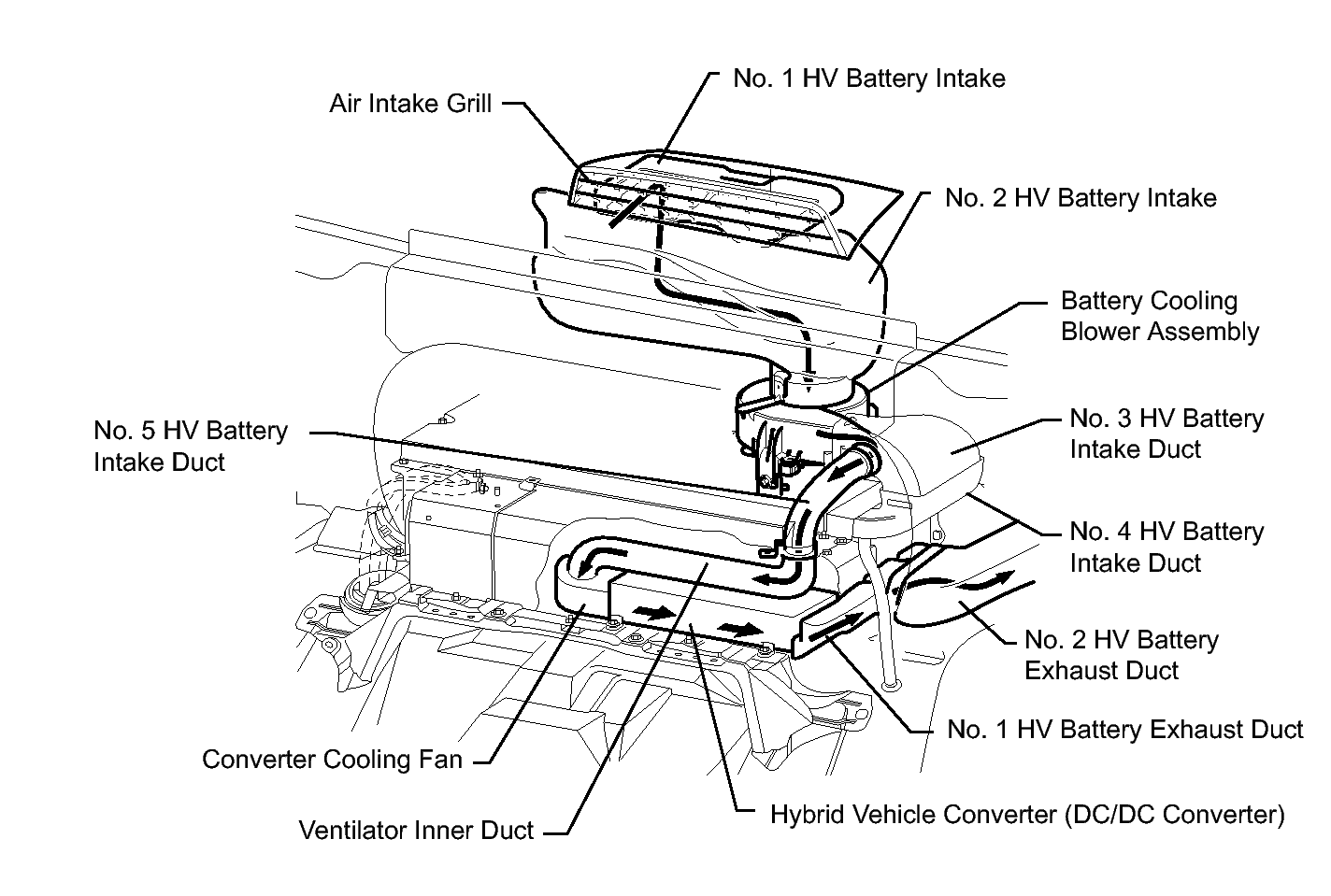

Fig 1: Identifying DC/DC Converter Flow Diagram
GTY178809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DTC No. INF Code DTC Detection Condition Trouble Area
P0A08 101 Overheating of the hybrid vehicle converter (DC/DC converter)
  • Duct
  • Hybrid vehicle converter (DC/DC converter)
  • Auxiliary battery
