Section 67 (Hybrid Vehicle Control System (P311) (Hybrid) (Diagnostic Codes (P0343-747 - P0A78-282))
>>
Hybrid Control System
>>
DTC P0705-757: Transmission Range Sensor Circuit; DTC P0705-758: Transmission Range Sensor Circuit; DTC P0851-775: Park / Neutral Switch Input Circuit Low
>>
Wiring Diagram
DTC P0705-757: Transmission Range Sensor Circuit; DTC P0705-758: Transmission Range Sensor Circuit; DTC P0851-775: Park / Neutral Switch Input Circuit Low: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

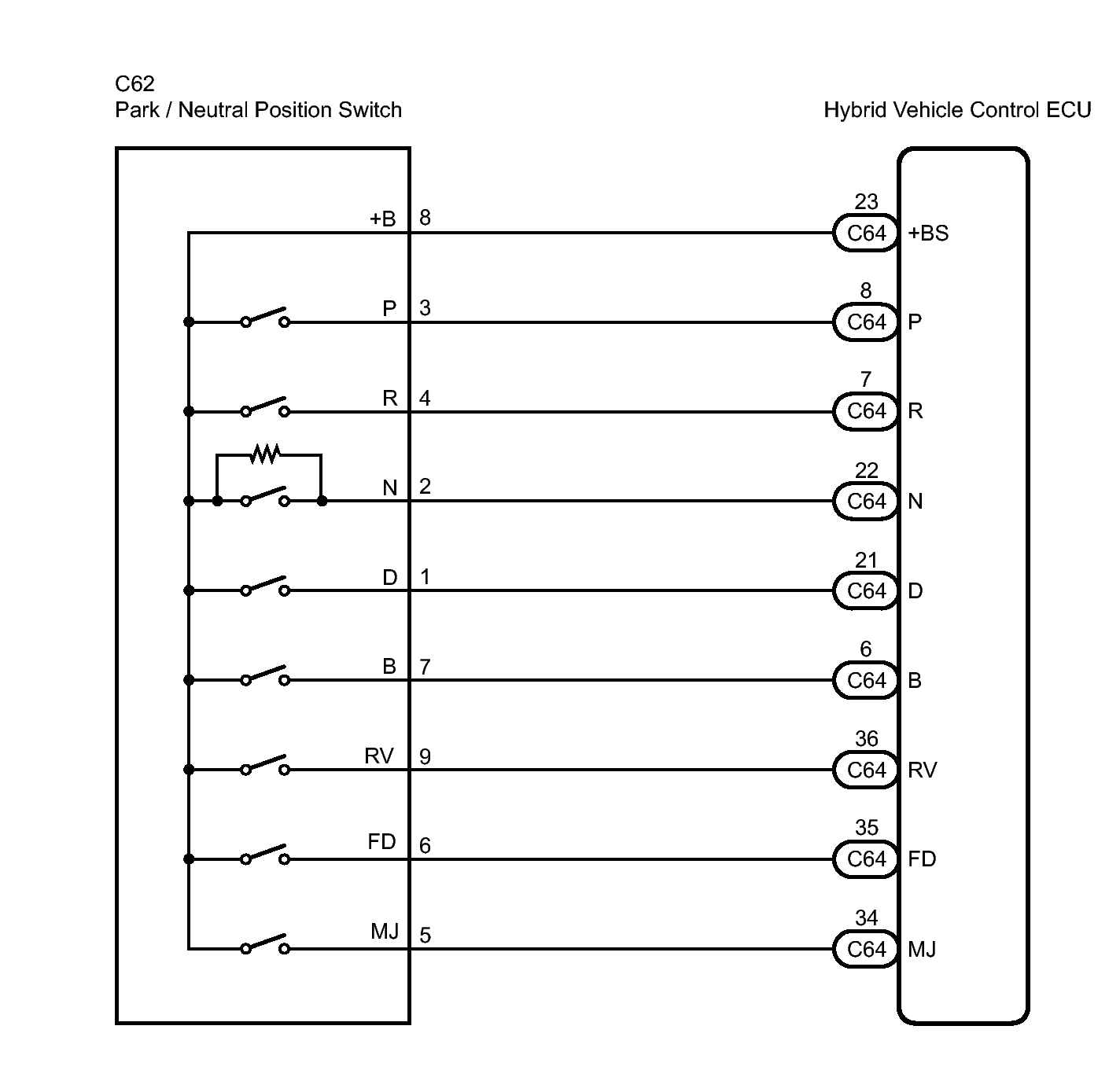

Fig 1: Identifying Park/Neutral Position Switch Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
