DTC P0516-769: Battery Temperature Sensor Circuit Low; DTC P0517-770: Battery Temperature Sensor Circuit High: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

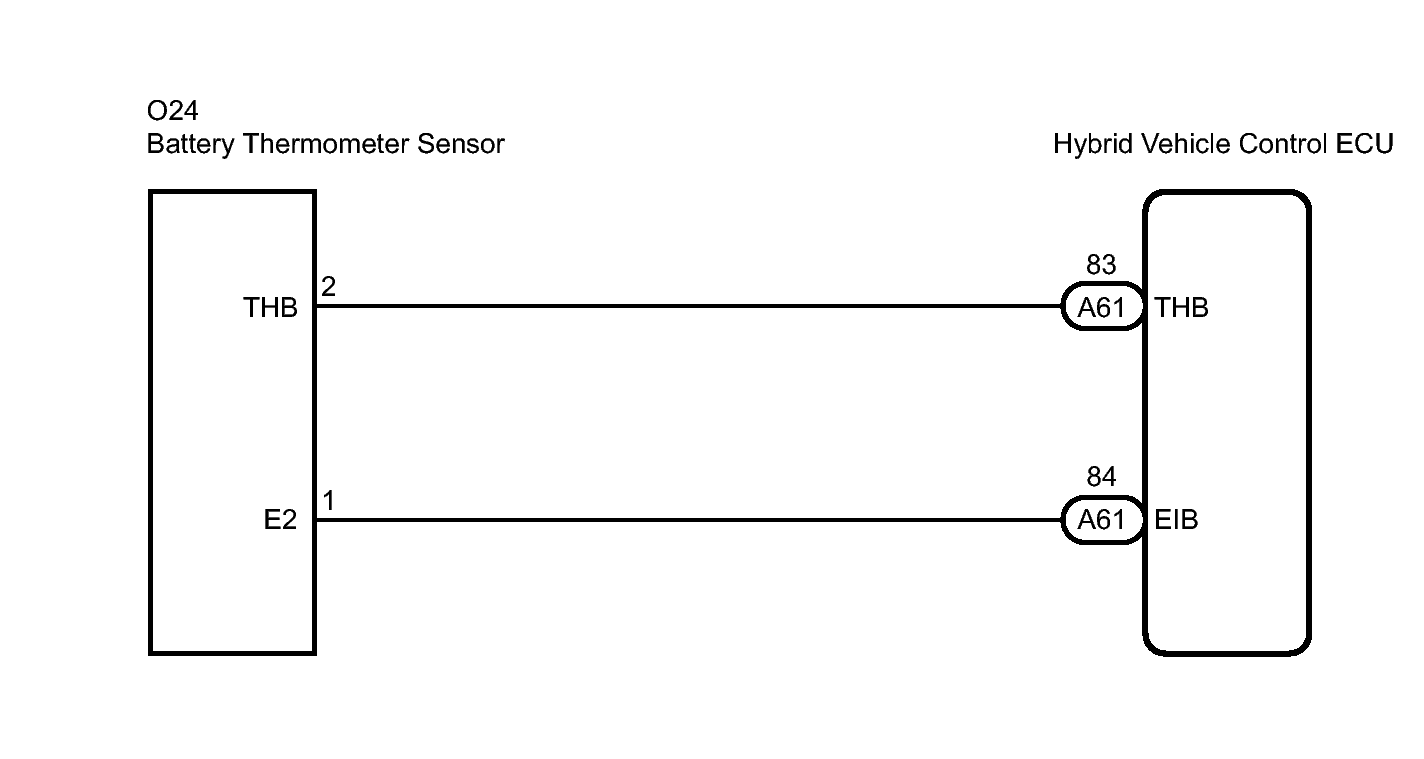

Fig 1: Identifying Battery Temperature Sensor Circuit Wiring Diagram
GTY292924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
