DTC P0343-747: Camshaft Position Sensor "A" Circuit High Input: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

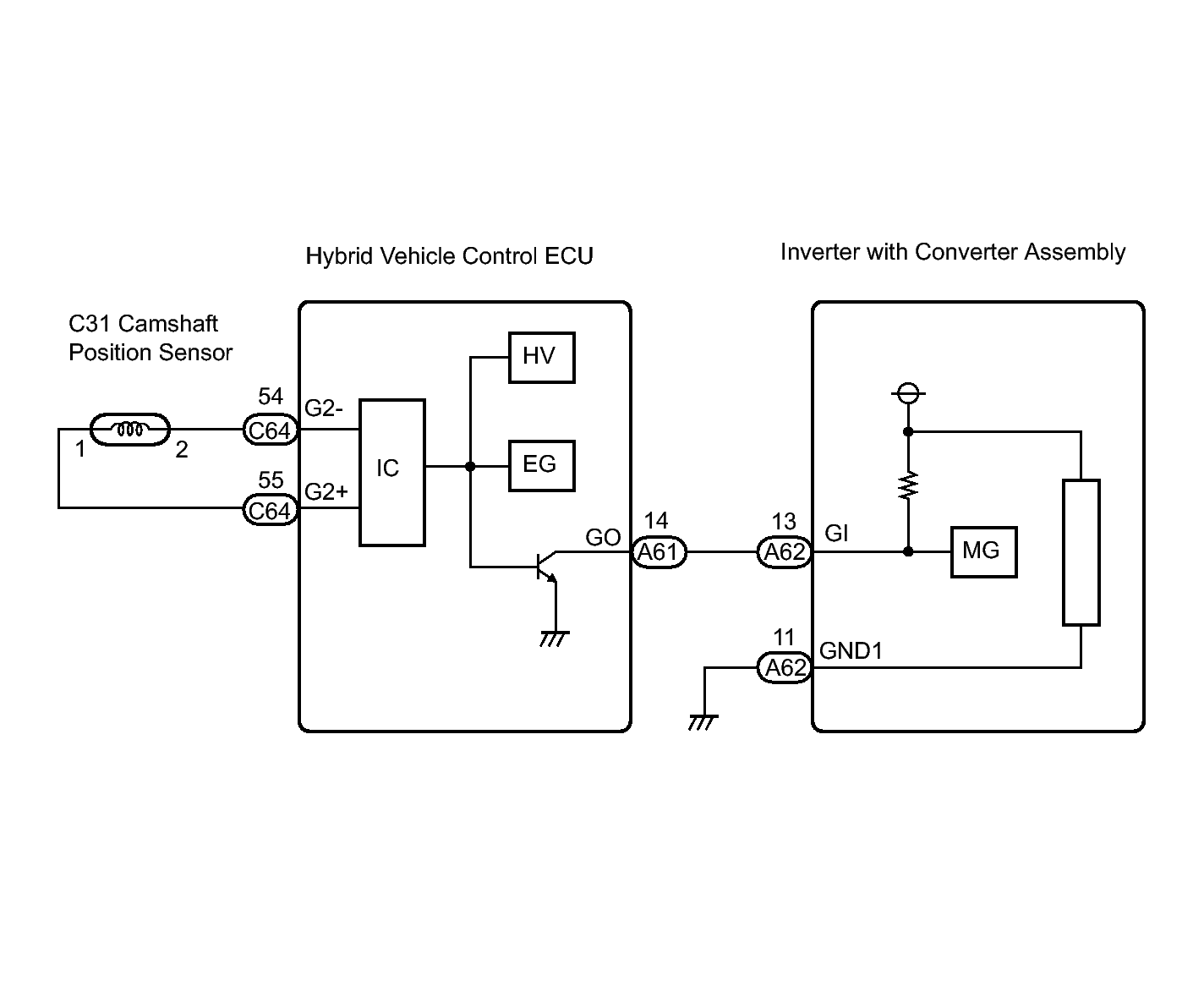

Fig 1: Identifying Hybrid Vehicle Control ECU Wiring Diagram
GTY192853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
