DTC U0110-159: Lost Communication with Driver Motor Control Module; DTC U0110-160: Lost Communication with Driver Motor Control Module; DTC U0110-656: Lost Communication with Driver Motor Control Module; DTC U0110-657: Lost Communication with Driver Motor Control Module: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

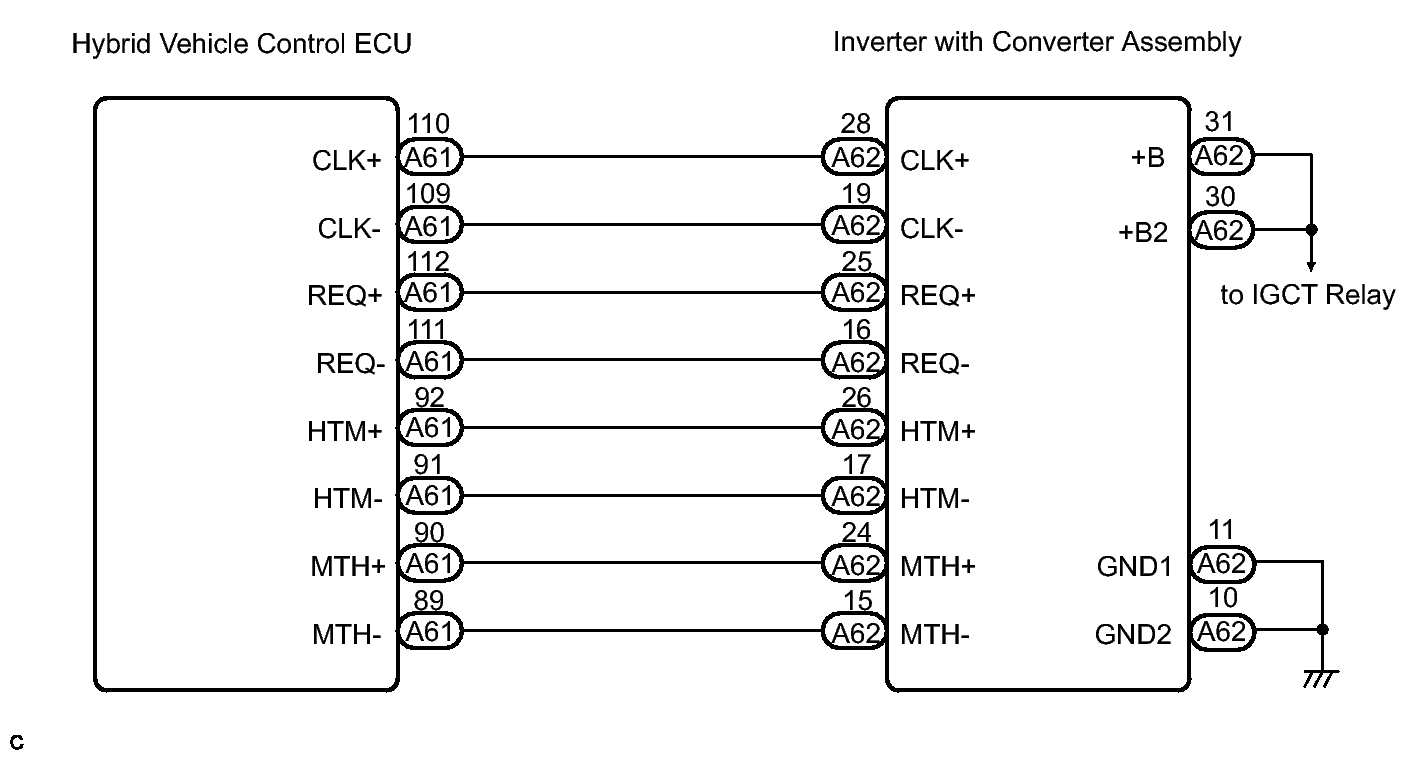

Fig 1: Identifying Hybrid Vehicle Control ECU To Inverter With Converter Assembly (MG ECU) Wiring Diagram
GTY171415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
