DTC P3108-535: A/C Amplifier Communication Circuit Malfunction; DTC P3108-536: A/C Amplifier Communication Circuit Malfunction; DTC P3108-538: A/C Amplifier Communication Circuit Malfunction: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

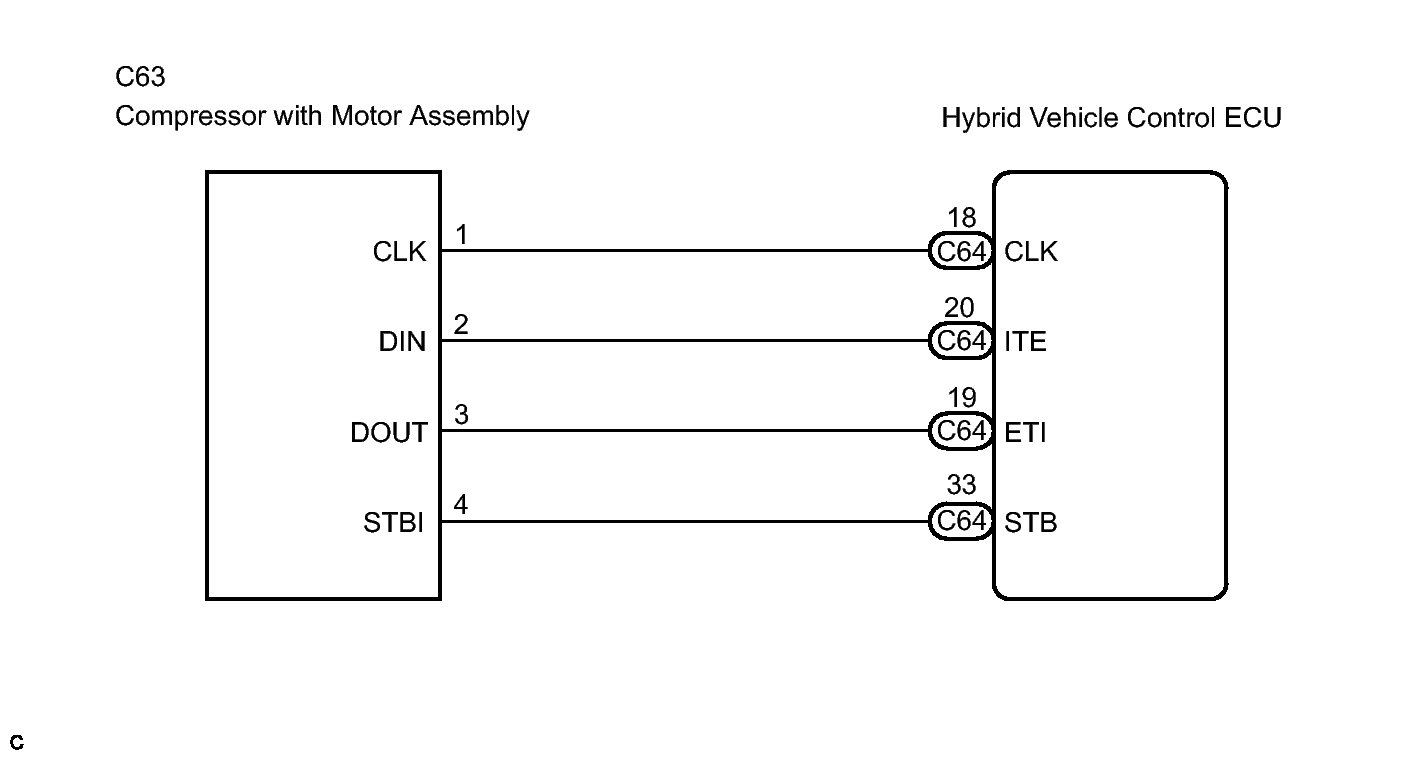

Fig 1: Identifying Compressor With Motor Assembly To Hybrid Vehicle Control ECU Wiring Diagram

HINT:

DTC P3108-535 may be stored due to an open circuit in the SMRB circuit or SMRG circuit.
