POWER STEERING ECU (W/ Wireless Door Lock System): Removal: Removal

WARNING: This page is about a different car, the 2013 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE STEERING COLUMN ASSEMBLY
Refer to REMOVAL
REMOVE STEERING COLUMN UPPER WITH SWITCH BRACKET ASSEMBLY (w/o Smart Key System) . Refer to DISASSEMBLY - Step 1
REMOVE STEERING LOCK ACTUATOR ASSEMBLY (w/ Smart Key System) . Refer to DISASSEMBLY - Step 2
REMOVE POWER STEERING ECU PROTECTOR (for 2AR) . Refer to DISASSEMBLY - Step 6
DISCONNECT ECU WIRE SUB-ASSEMBLY (for 2AR)
1. Disconnect the 2 connectors from the power steering ECU assembly.

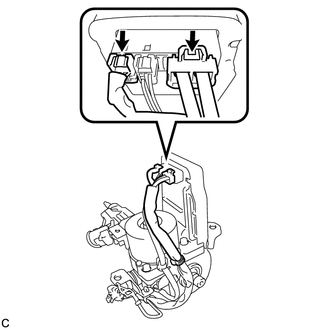

  Fig 1: Identifying Power Steering ECU Assembly Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POWER STEERING ECU WITH MOTOR ASSEMBLY (for 2AR) . Refer to DISASSEMBLY - Step 8
REMOVE POWER STEERING ECU PROTECTOR (for 2GR) . Refer to DISASSEMBLY - Step 9
DISCONNECT ECU WIRE SUB-ASSEMBLY (for 2GR)
1. Disconnect the 2 connectors from the power steering ECU assembly.

  Fig 2: Identifying Power Steering ECU Assembly Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POWER STEERING ECU WITH MOTOR ASSEMBLY (for 2GR) . Refer to DISASSEMBLY - Step 11
REMOVE POWER STEERING ECU ASSEMBLY (for 2GR)
1. Disengage the 4 claws to remove the protector.

  Fig 3: Identifying Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 3 bolts.

  Fig 4: Identifying Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 bolts to remove the power steering ECU assembly from the power steering motor assembly.

  Fig 5: Identifying Power Steering ECU Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
