DTC P0617: Starter Relay Circuit High: Wiring Diagram

WARNING: This page is about a different car, the 2010 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

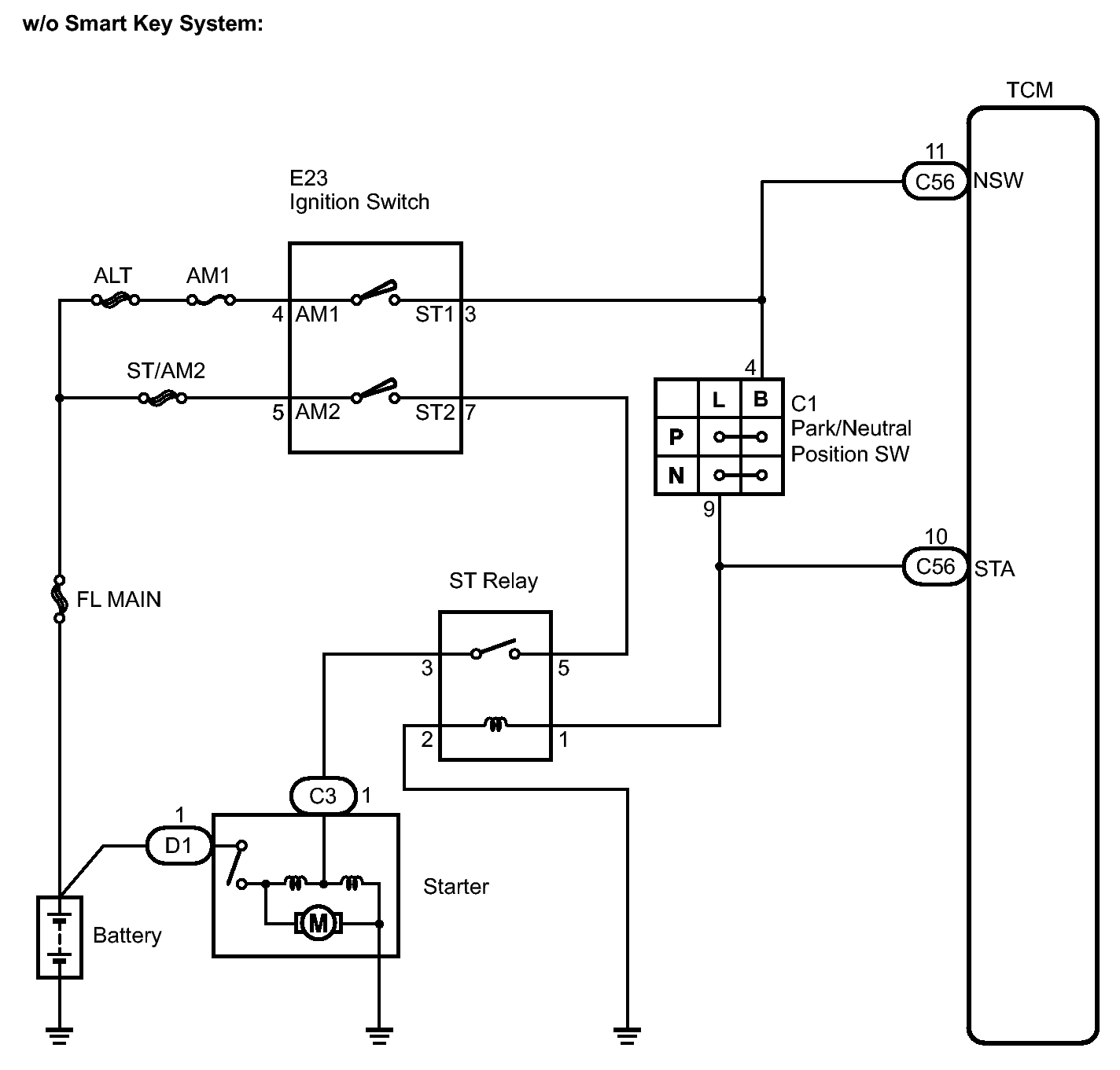

Fig 1: Starter Relay Circuit - Wiring Diagram (W/O Smart Key System)
GTY201352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

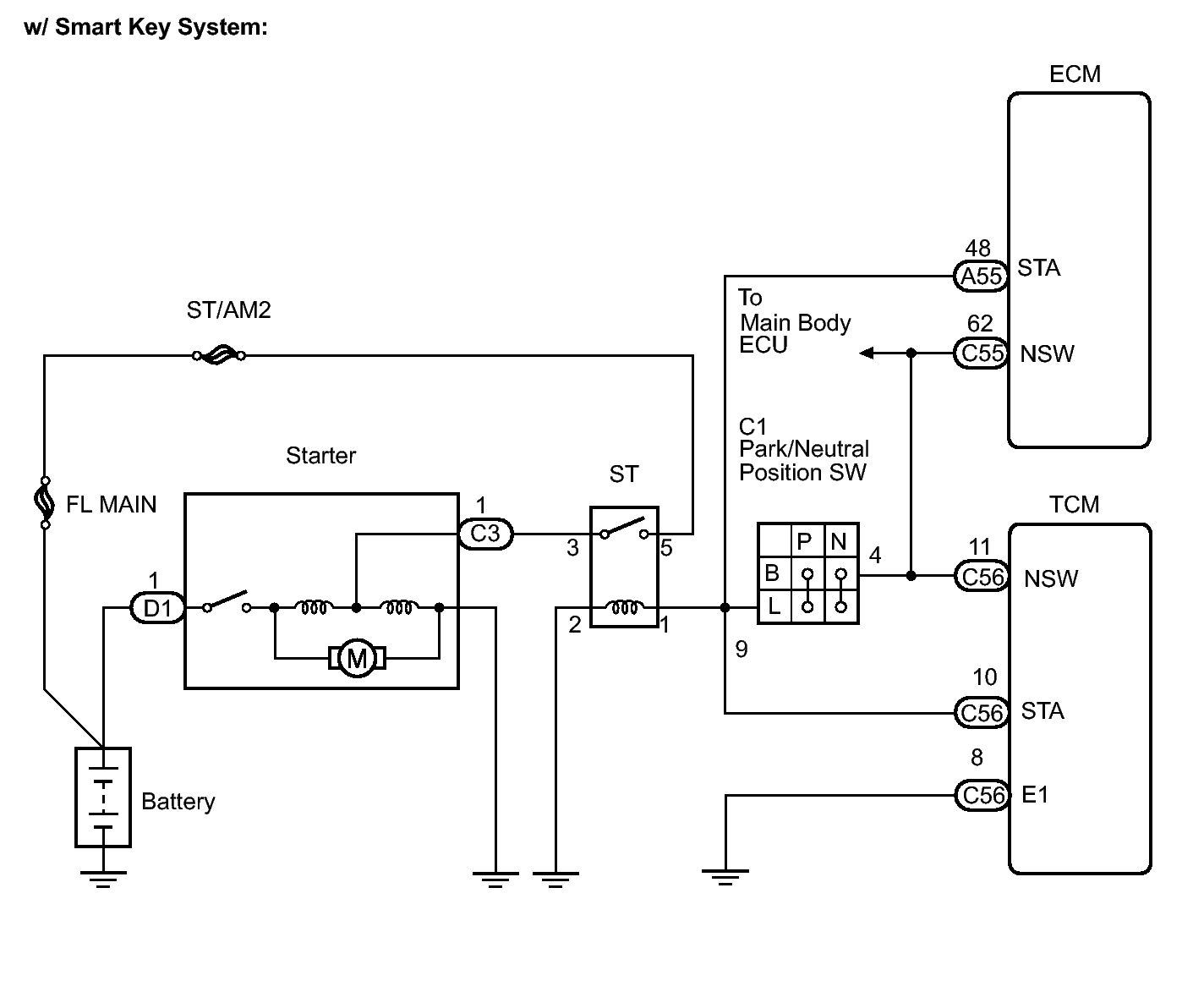

Fig 2: Starter Relay Circuit - Wiring Diagram (W/ Smart Key System)
GTY201350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
