DTC P0500: Vehicle Speed Sensor "A": Wiring Diagram

WARNING: This page is about a different car, the 2010 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

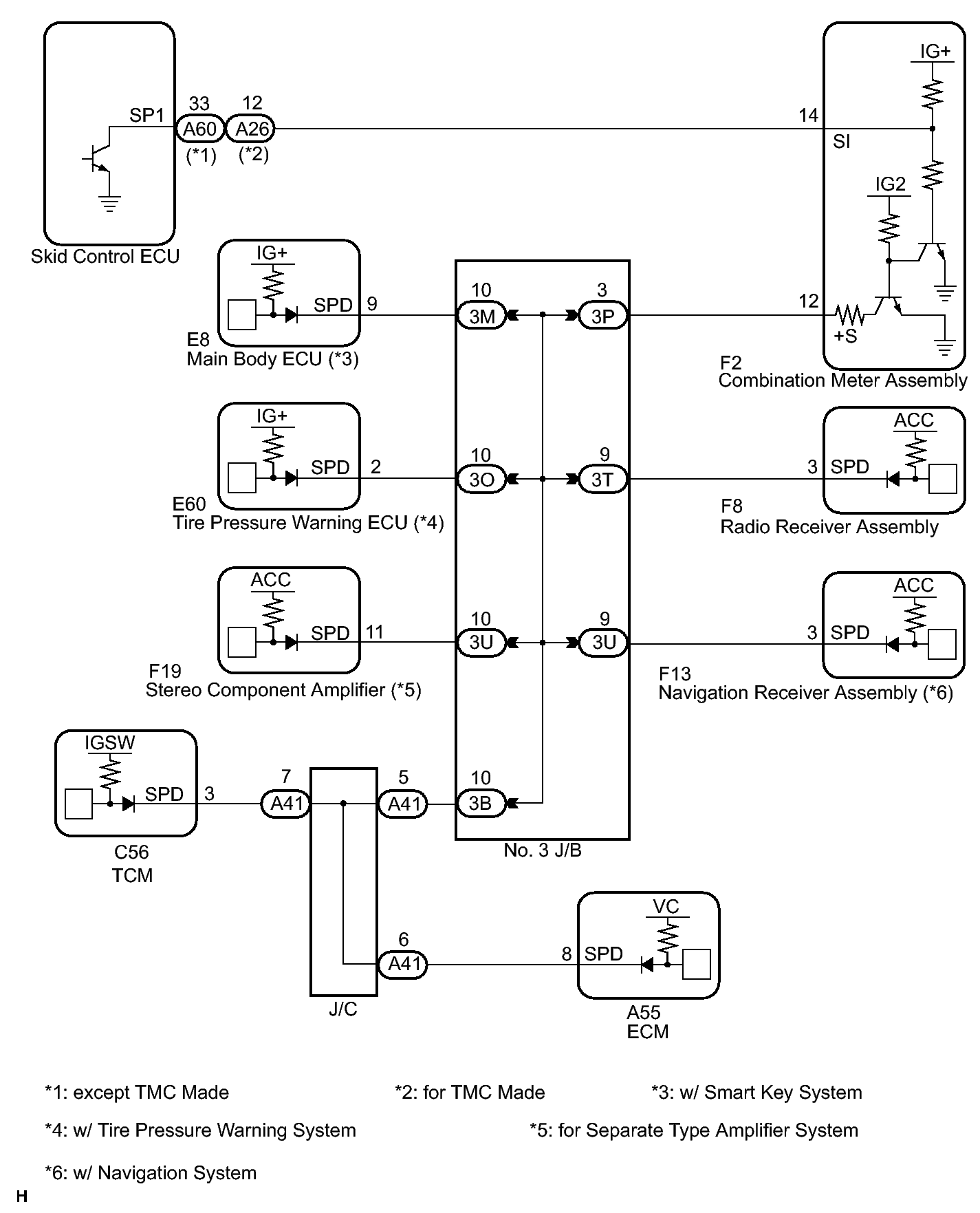

Fig 1: Vehicle Speed Sensor "A" Wiring Diagram
GTY174238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
